Package included:
According to items you buy
Description :

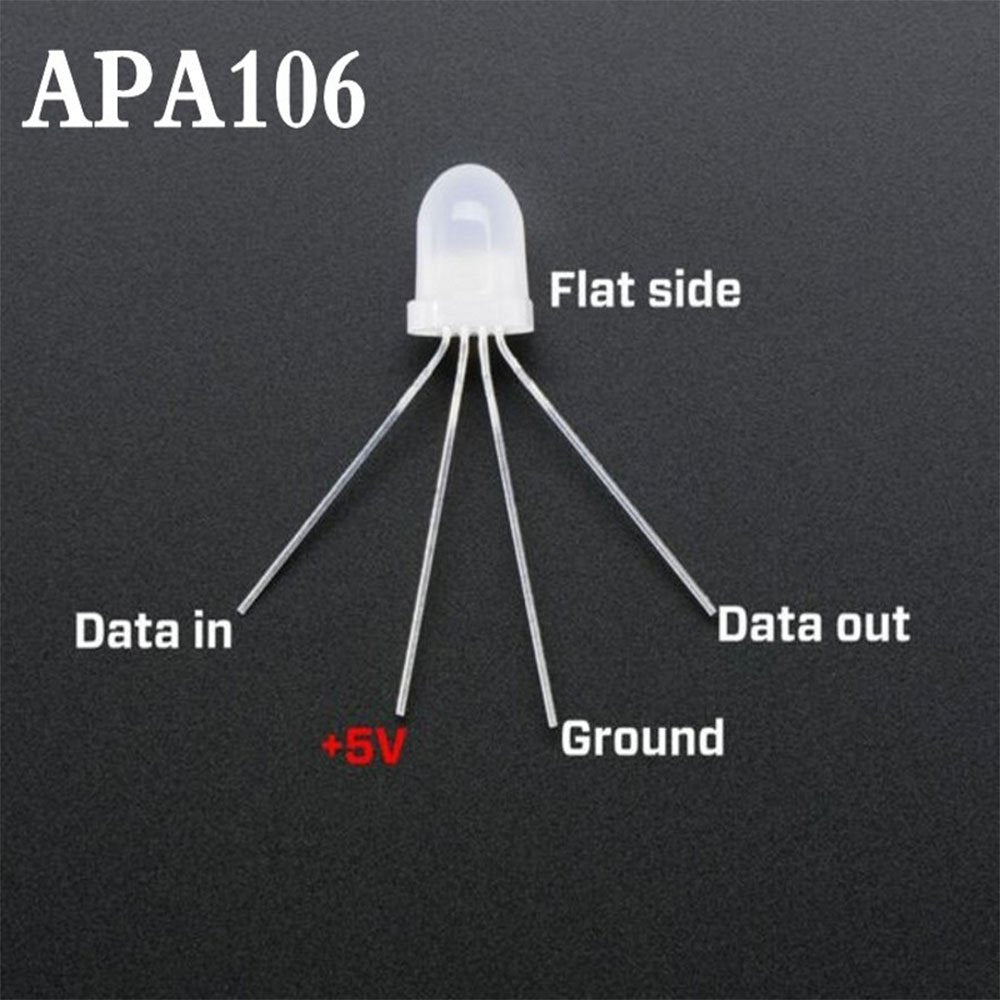

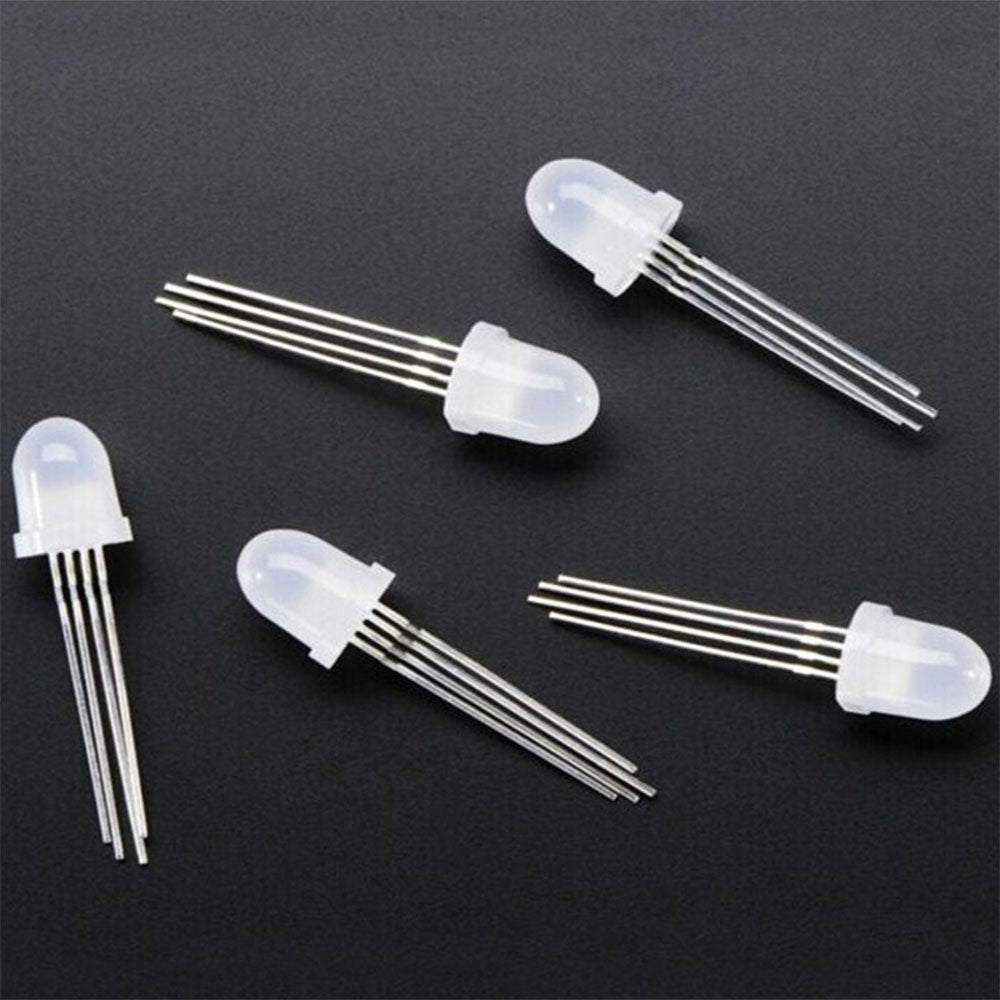

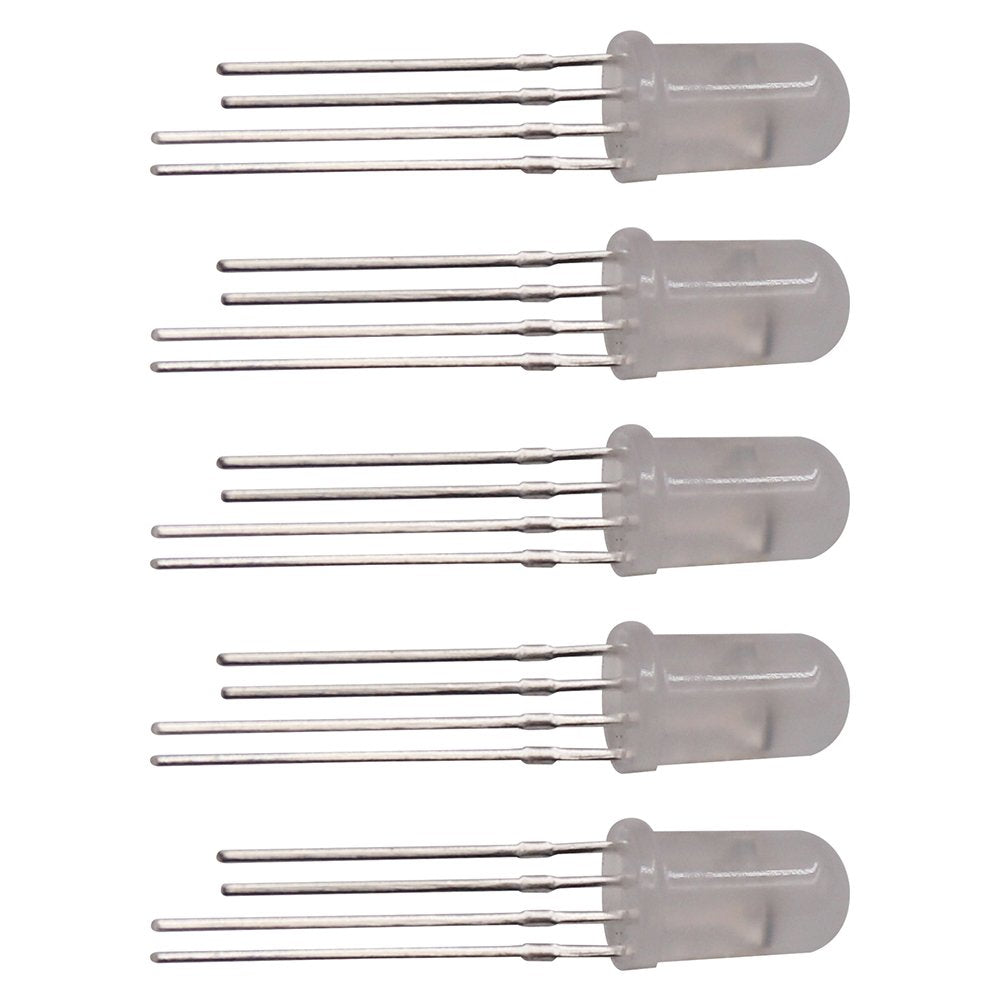

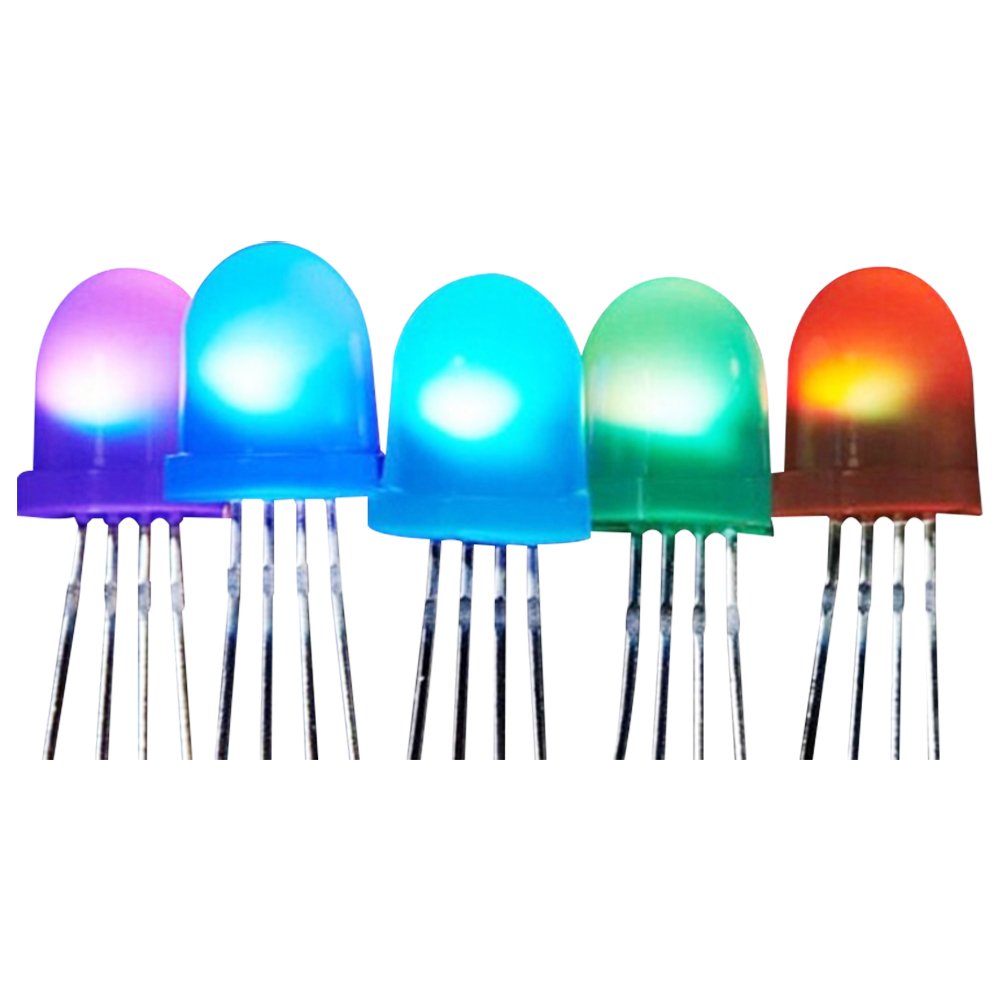

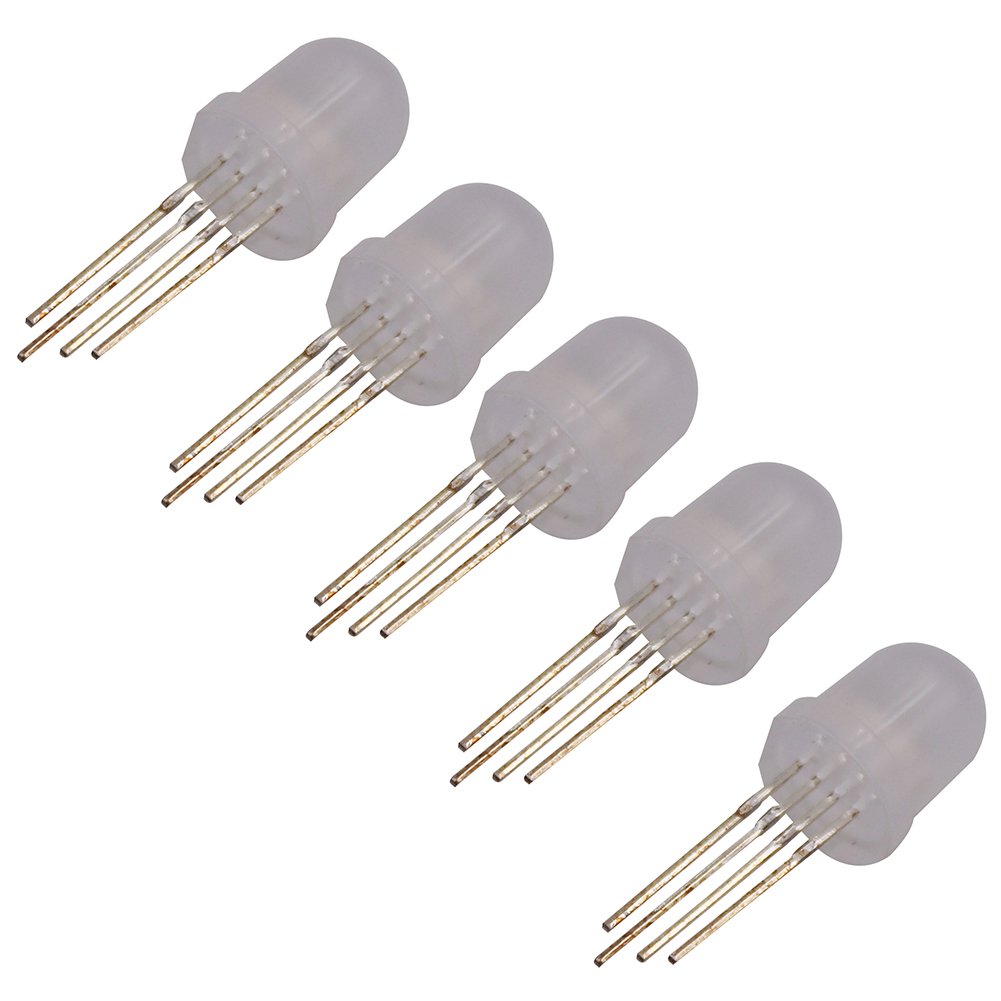

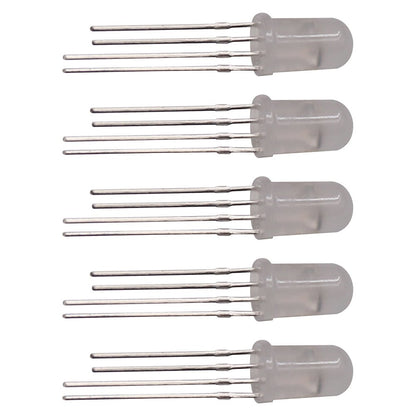

APA-106 is an RGB LED with built in controller IC (a.k.a. addressable LED.)
It uses same protocol as the popular WS2811 or WS2812 LEDs, so code can be reused.
Perfect for the breadboard or any through hole project.
Features:
8MM Round LED
4.5V-6V power supply
256 dimming level for each color
800kHz internal frequency
Single wire control
No external components required
The gray level adjusting circuit (256 brightness adjustable)
The on-chip voltage regulator tube, power supply end series
resistance to IC VDD feet, without external regulator
The built-in power on reset circuit
The PWM control terminal can achieve the 256 level adjustment, scanning frequency of not less than 400Hz/s
The cascade interface serial interface, via a signal line to complete the receiving and decoding of data
When the refresh rate of 30 frames per second, the number of cascade low speed mode is not less than 512 points, the high-speed mode is not less than 1024 points
The data transmission speed of up to 800Kbps
