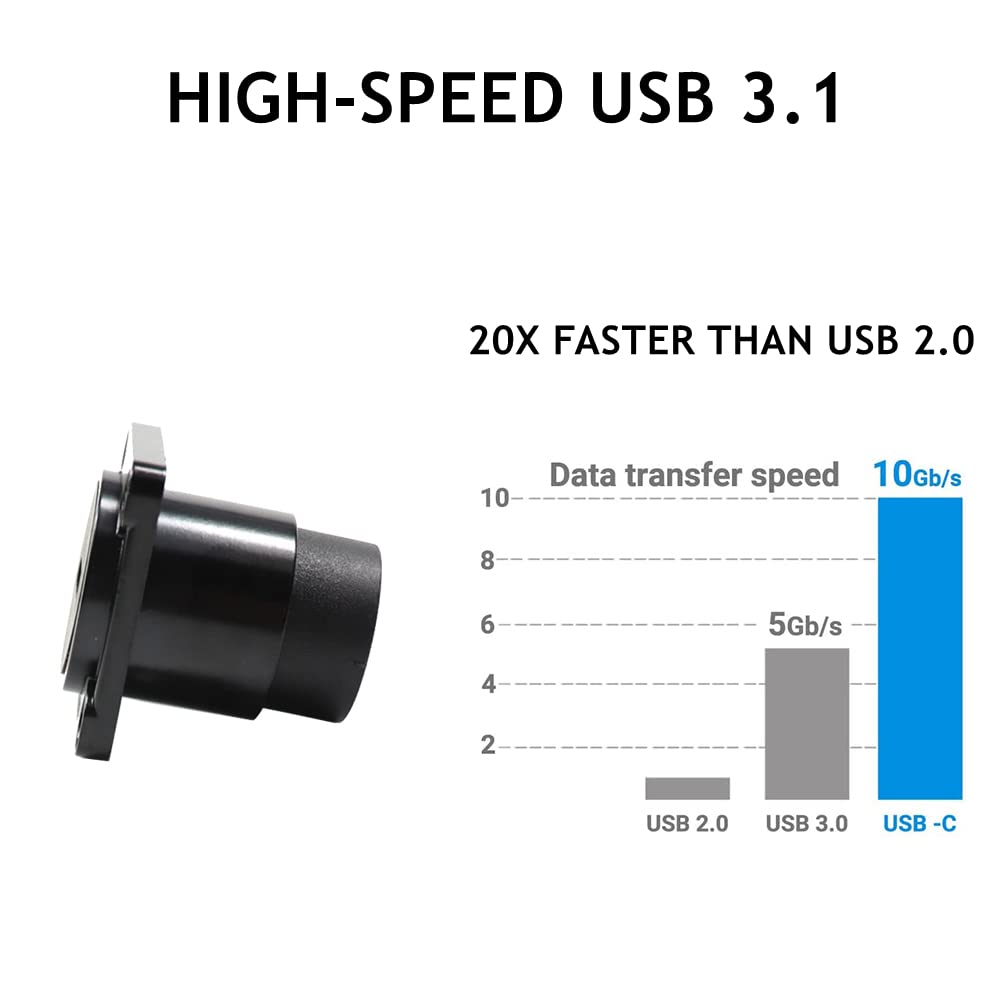

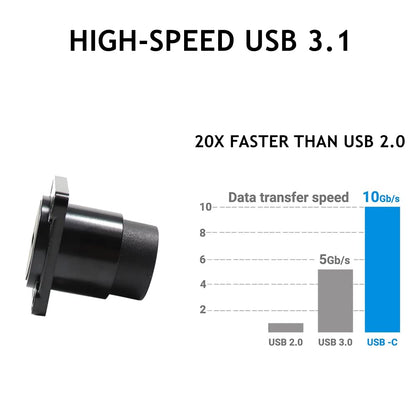

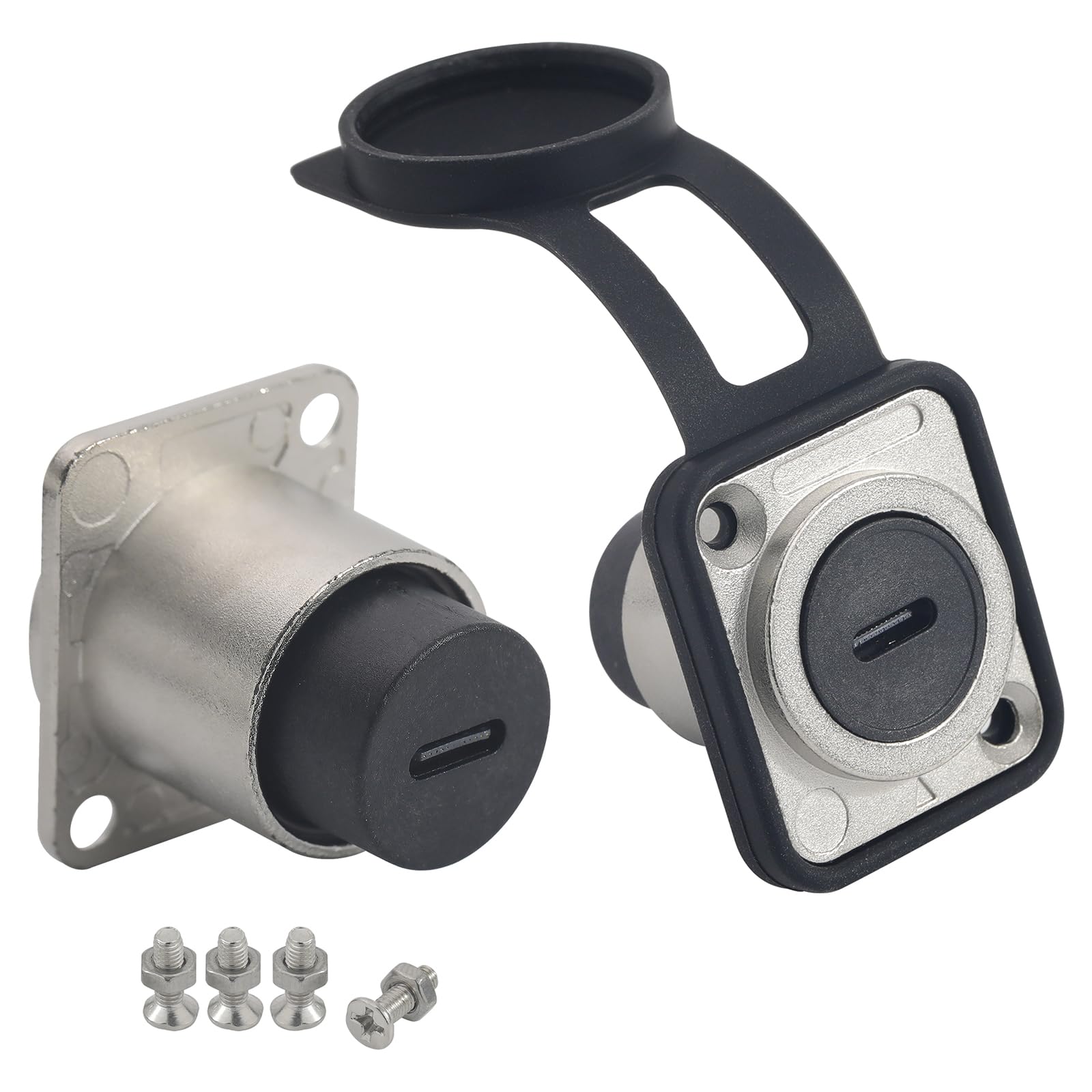

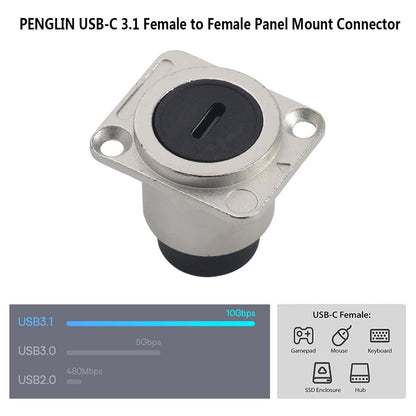

PENGLIN 2PCS USB 3.1 Type C Panel Mount Coupler, D-Type Module USB C Pass Through Connector, Female to Female Bulkhead Extension Adapter

$17.49 USD

~~$17.49 USD~~ $17.49 USD

Sale Sold out

Shipping calculated at checkout.

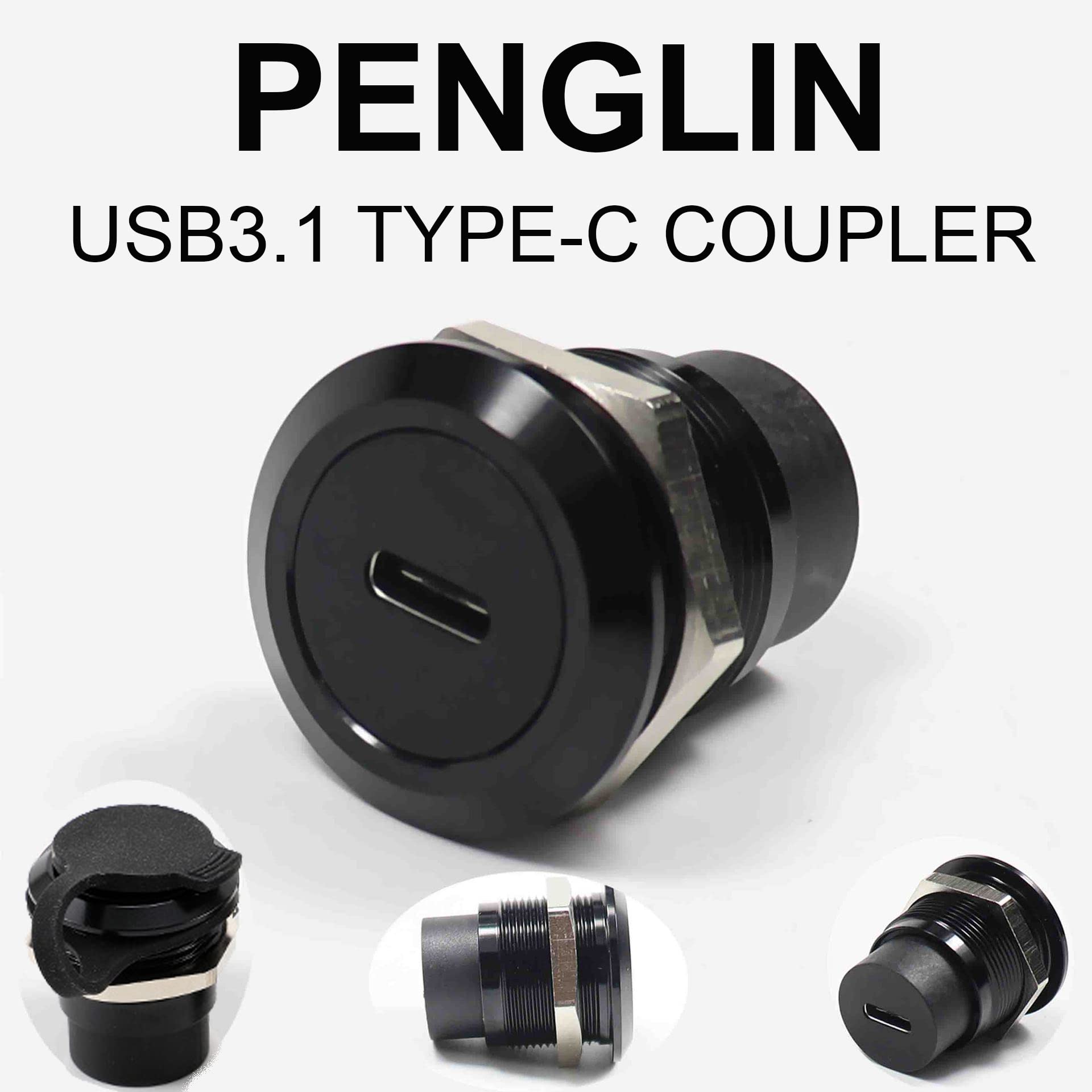

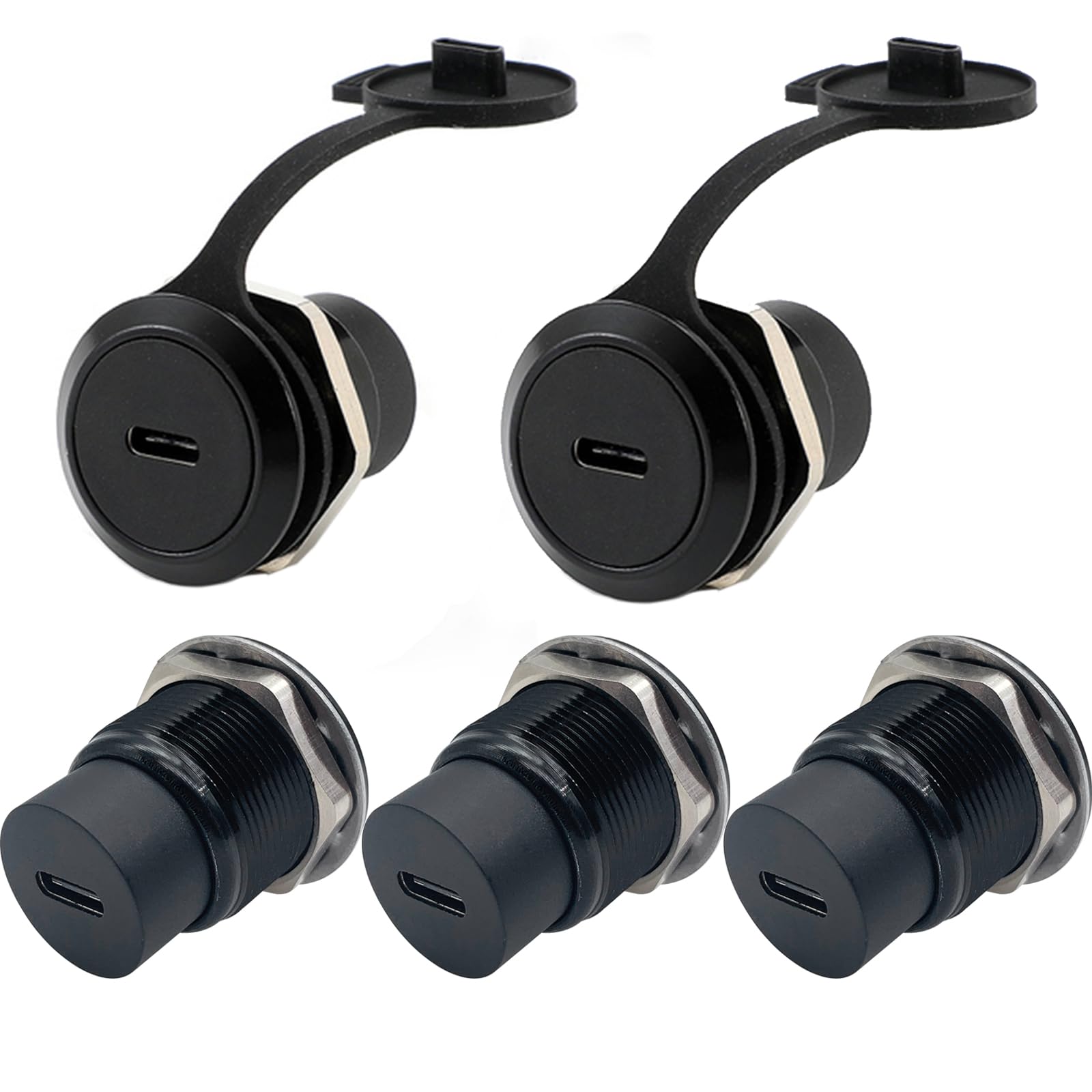

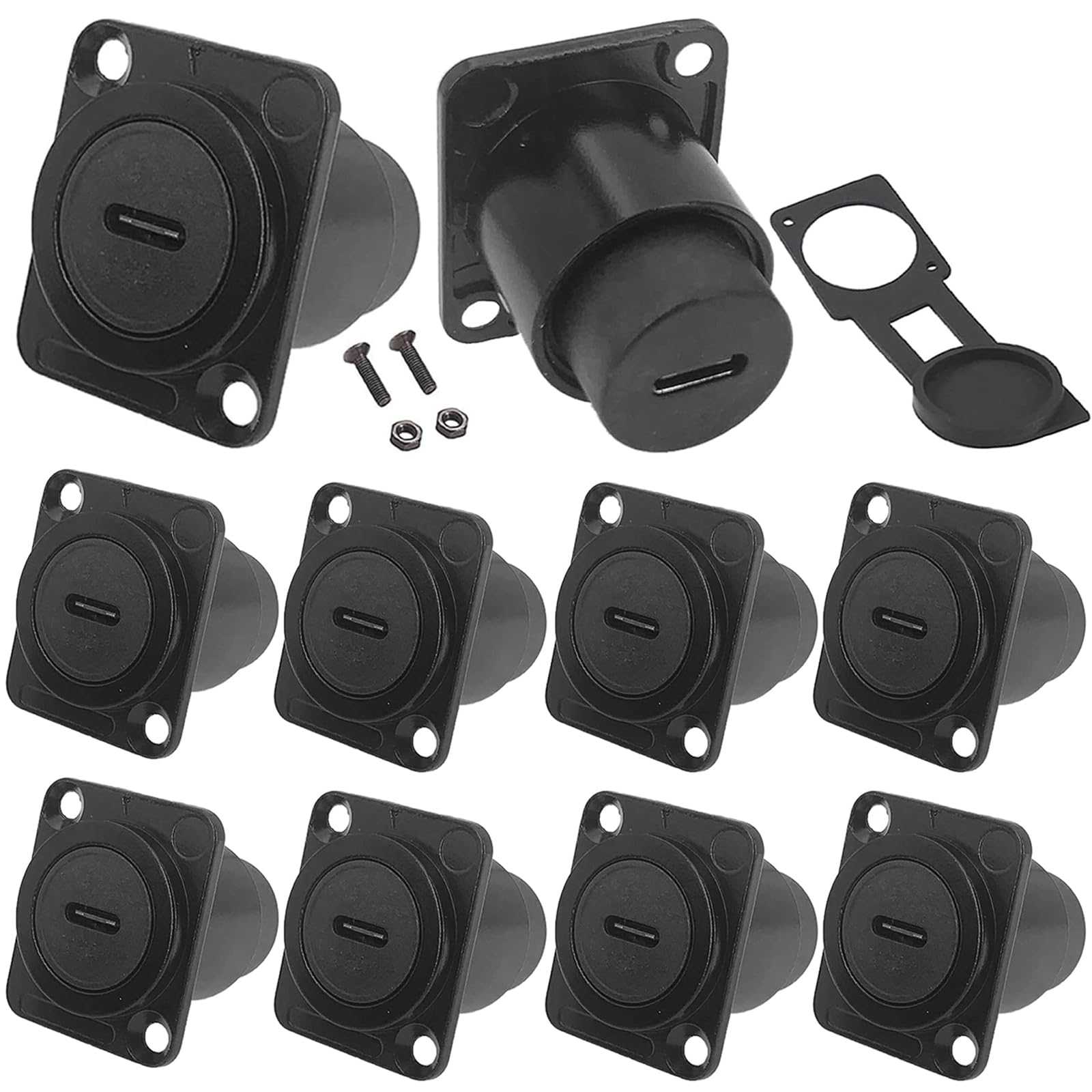

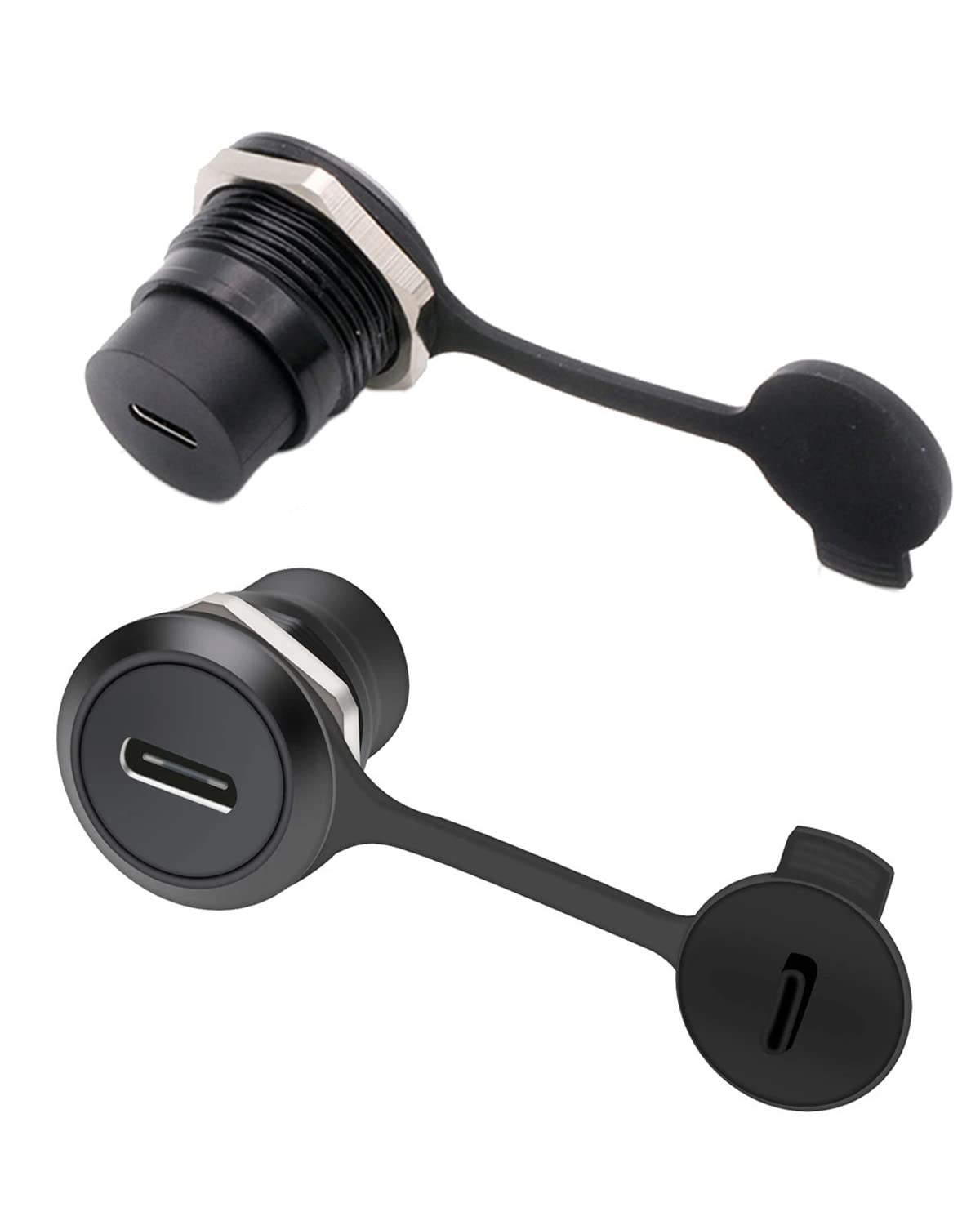

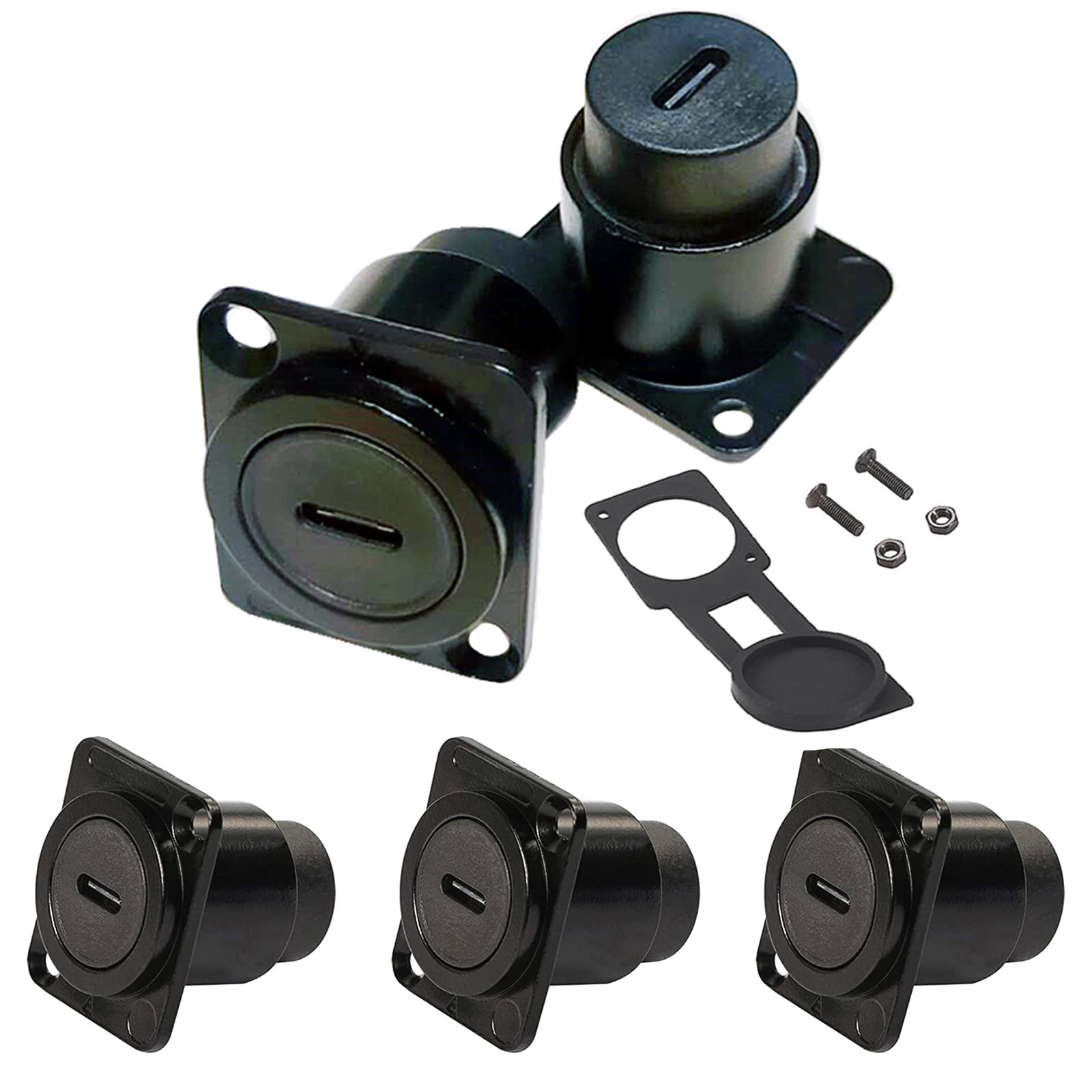

Size 2PCS(ROUND TYPE) 2PCS(D-TYPE) 5PCS(D-TYPE) 5PCS(ROUND TYPE) 10PCS(D-TYPE)

Color Black Silver

Contact resistance: <10Ω

Insulation resistance: >0.5GΩ

Rated voltage/ current: 50V/ 1.5A

Contact Material: Bronze(CuSn8)

Insulator Material: PBTP 15 % GR

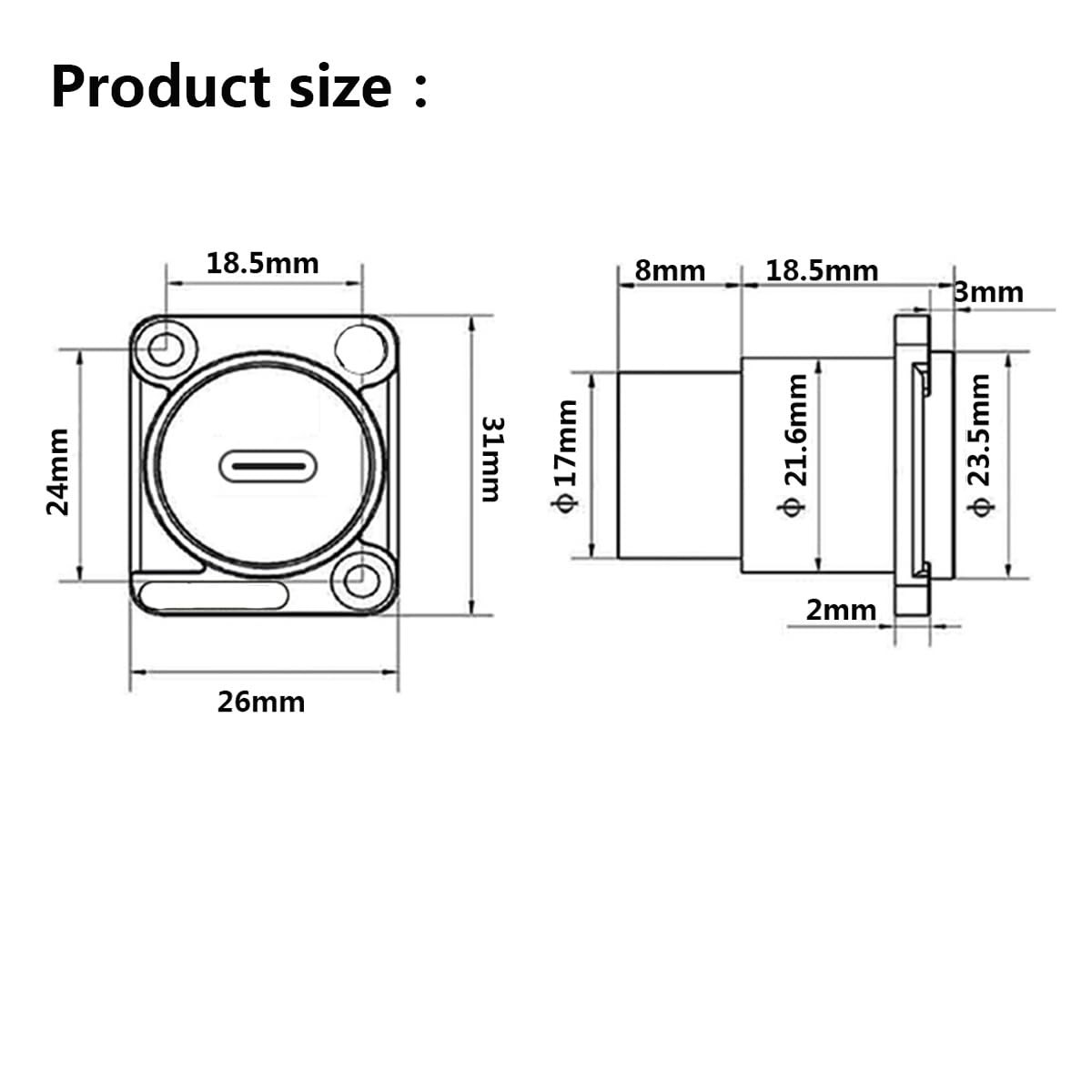

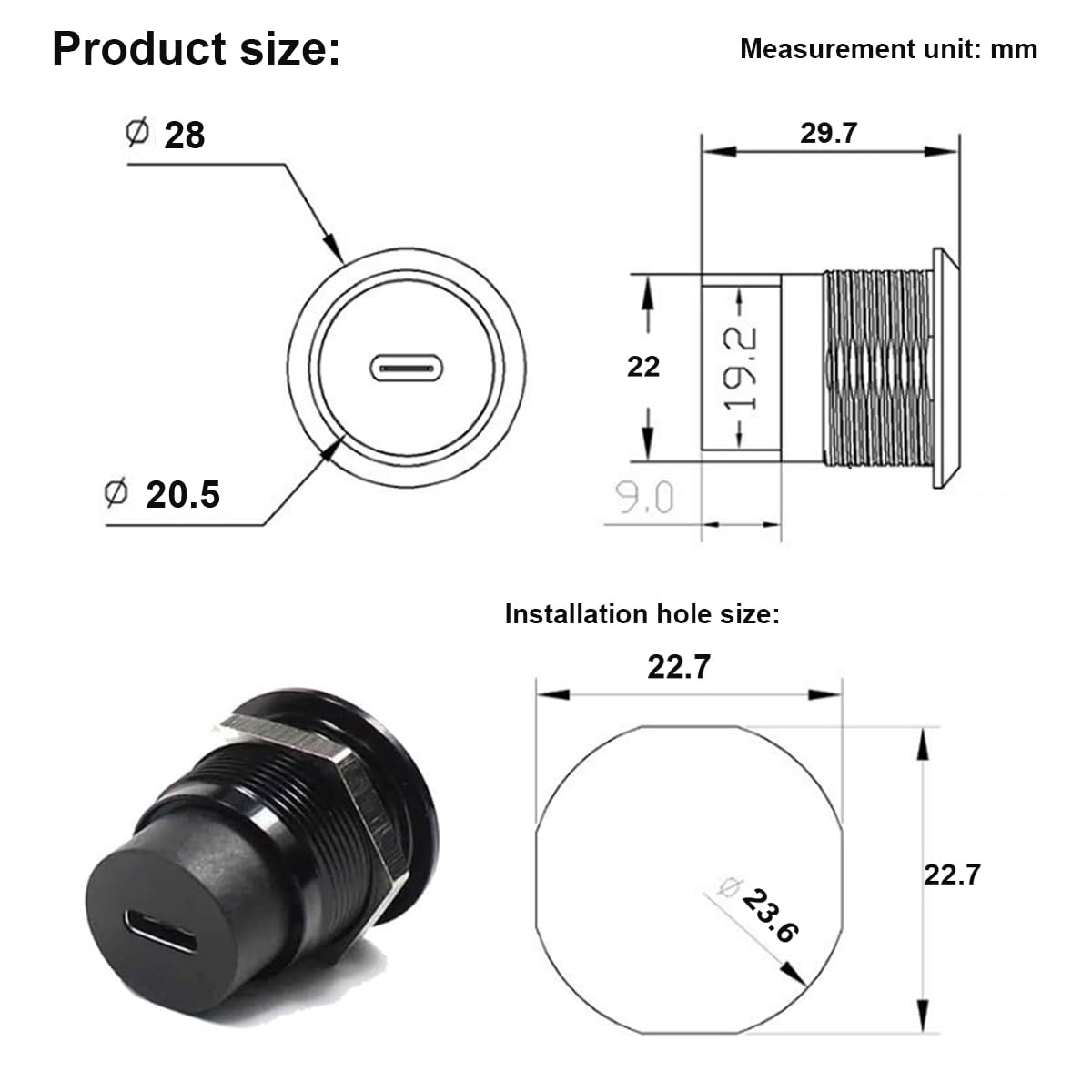

Panel thickness: 2.0-10mm/0.08-0.39in

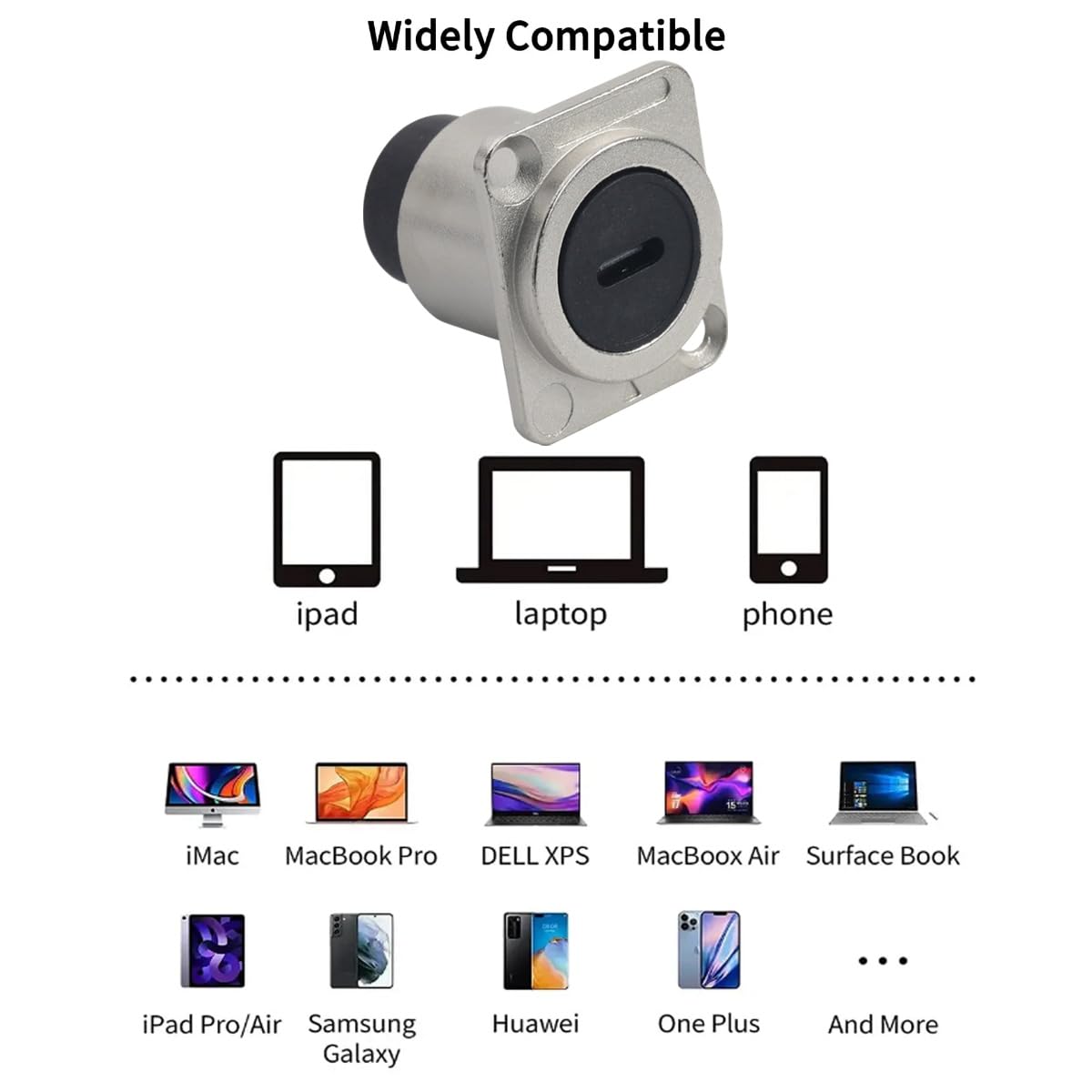

Using the standards based USB connection system insures compatibility with existing hardware.

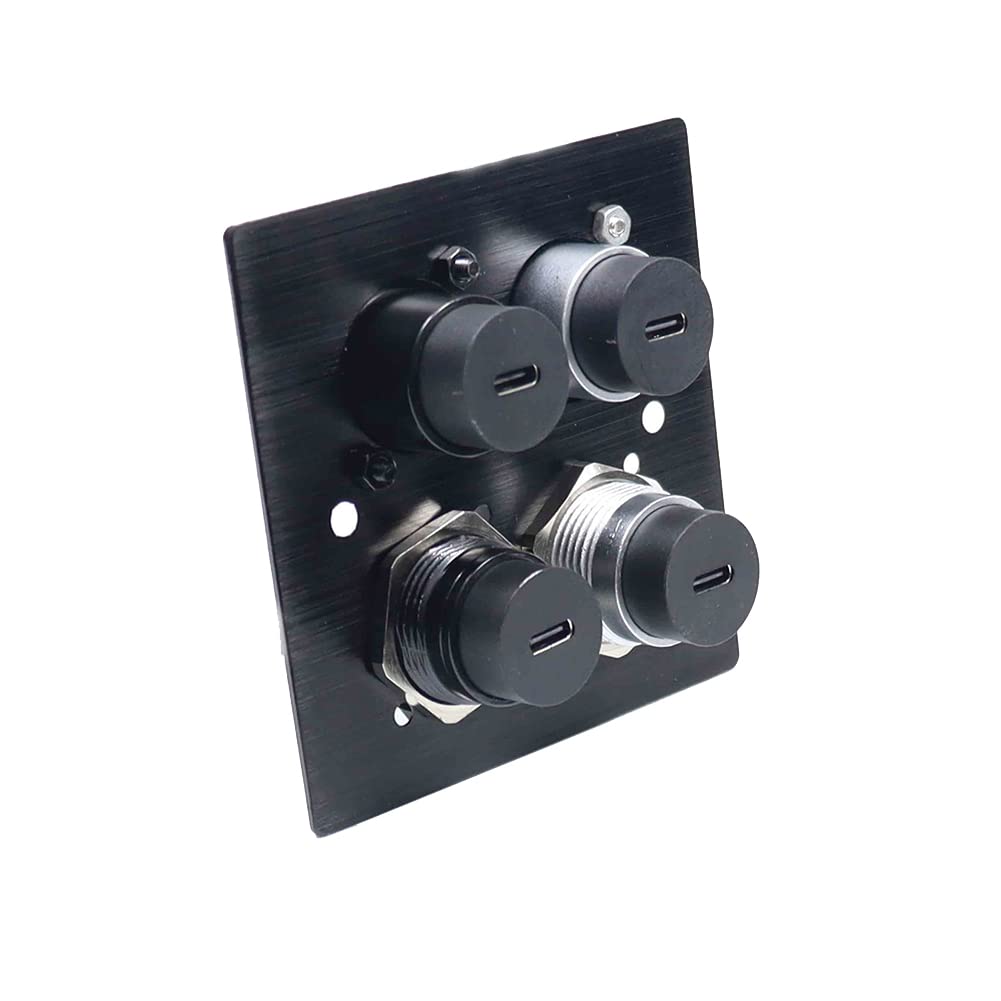

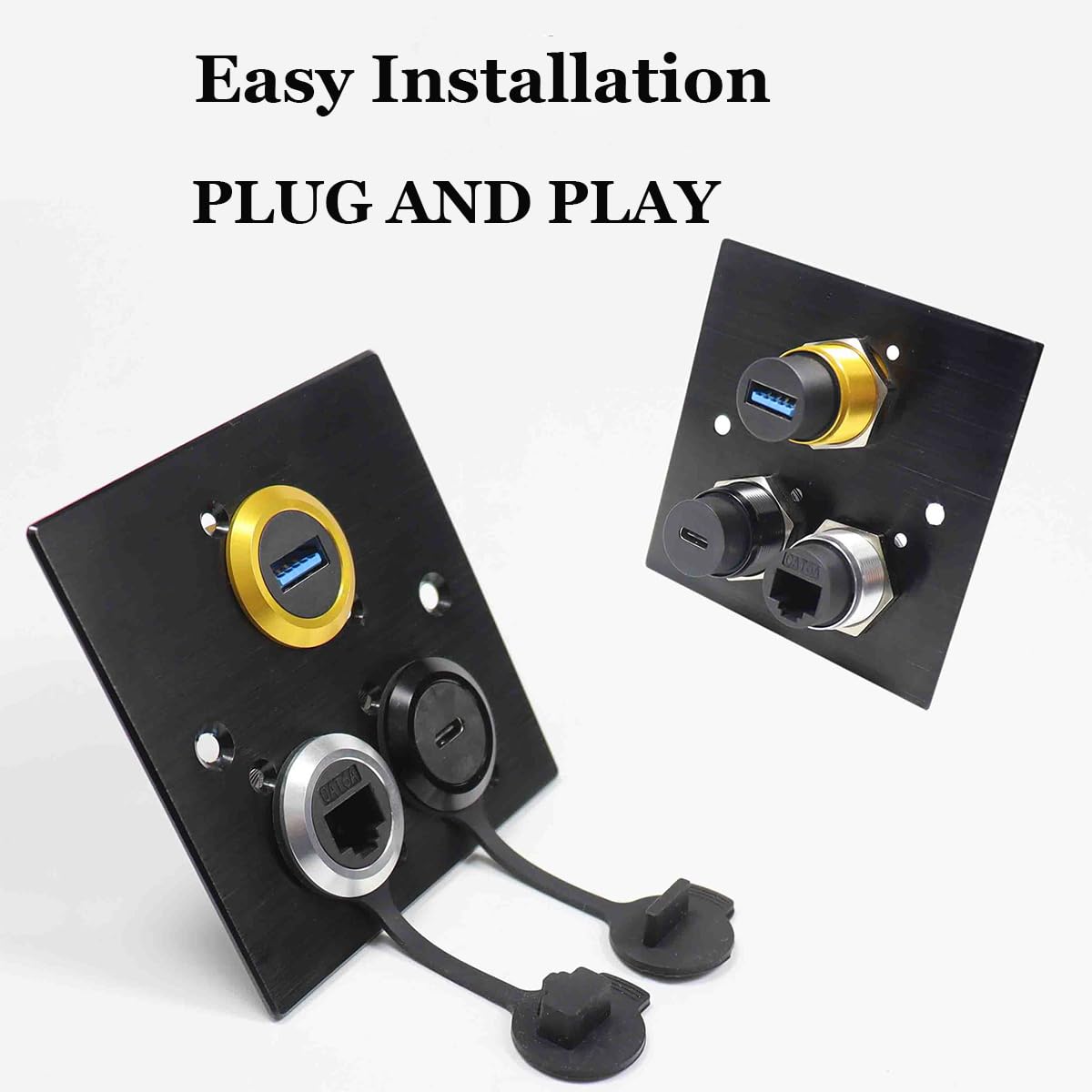

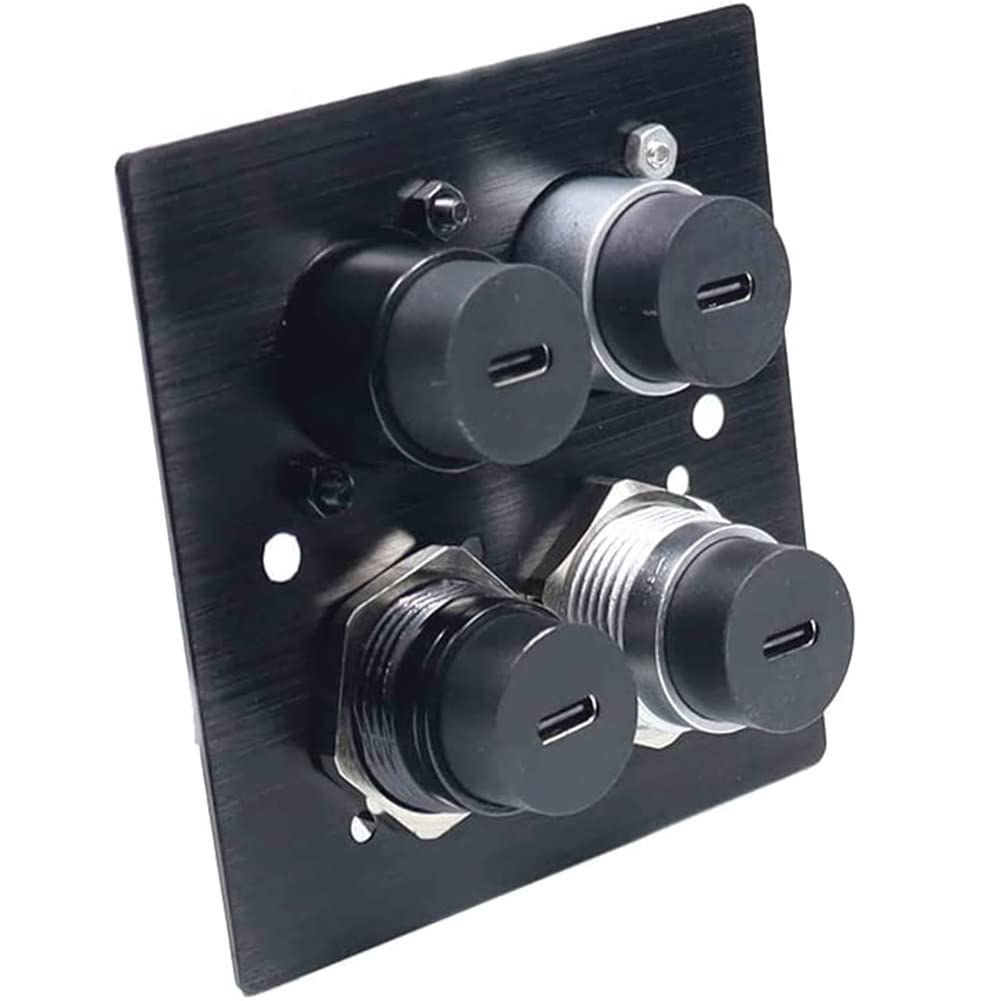

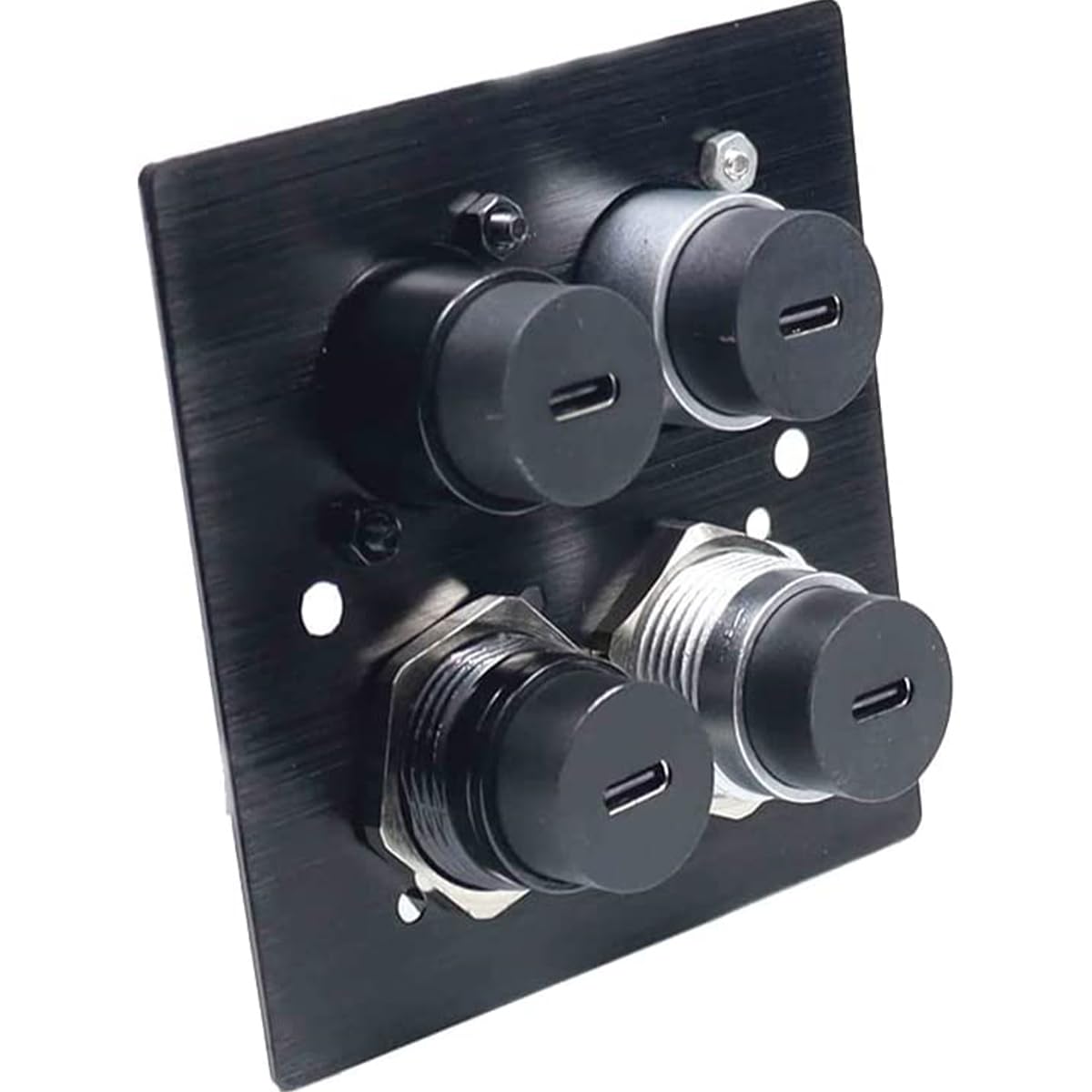

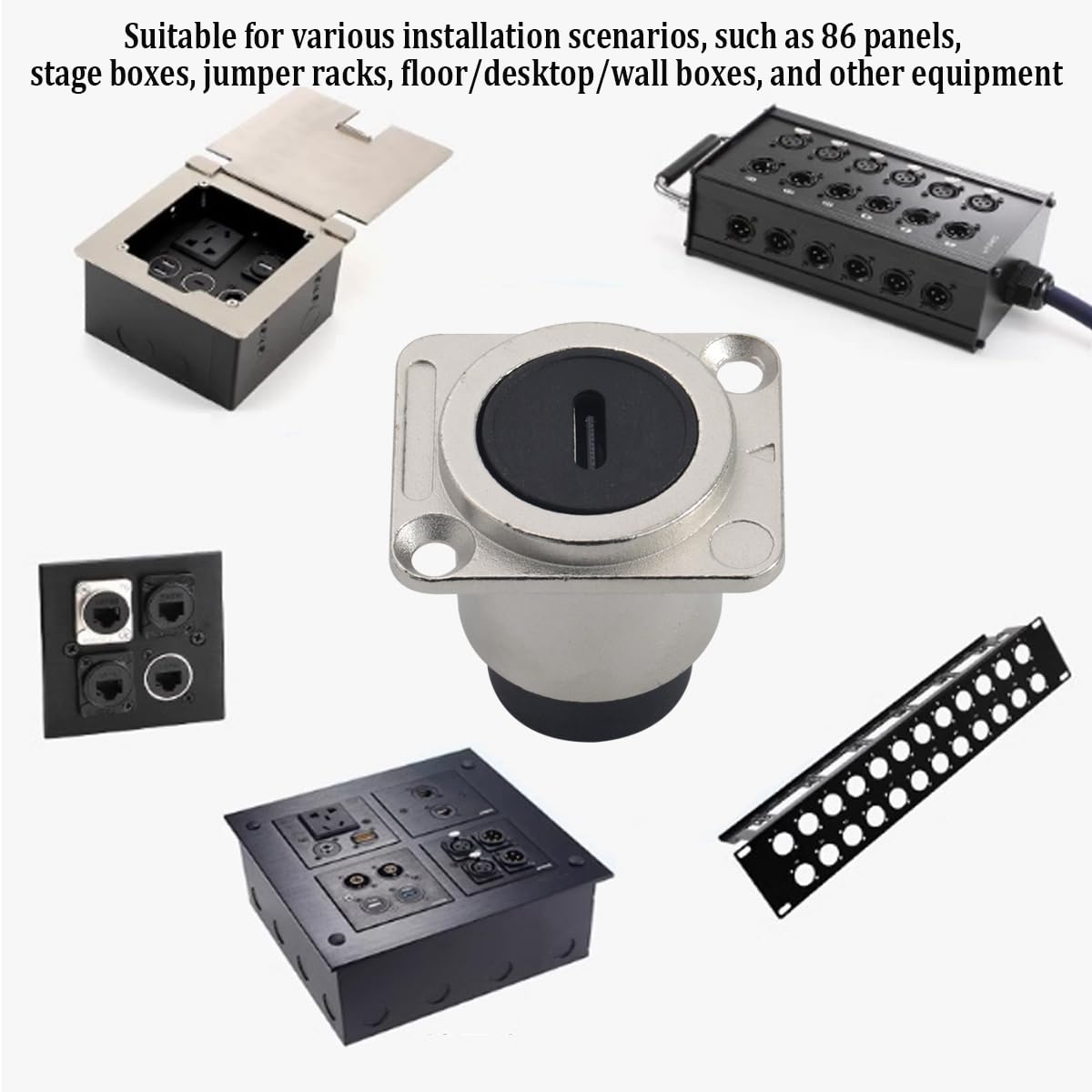

Can be installed in a fixed position, suitable for 86 panels, ground plugs, wall plugs, desk plugs.

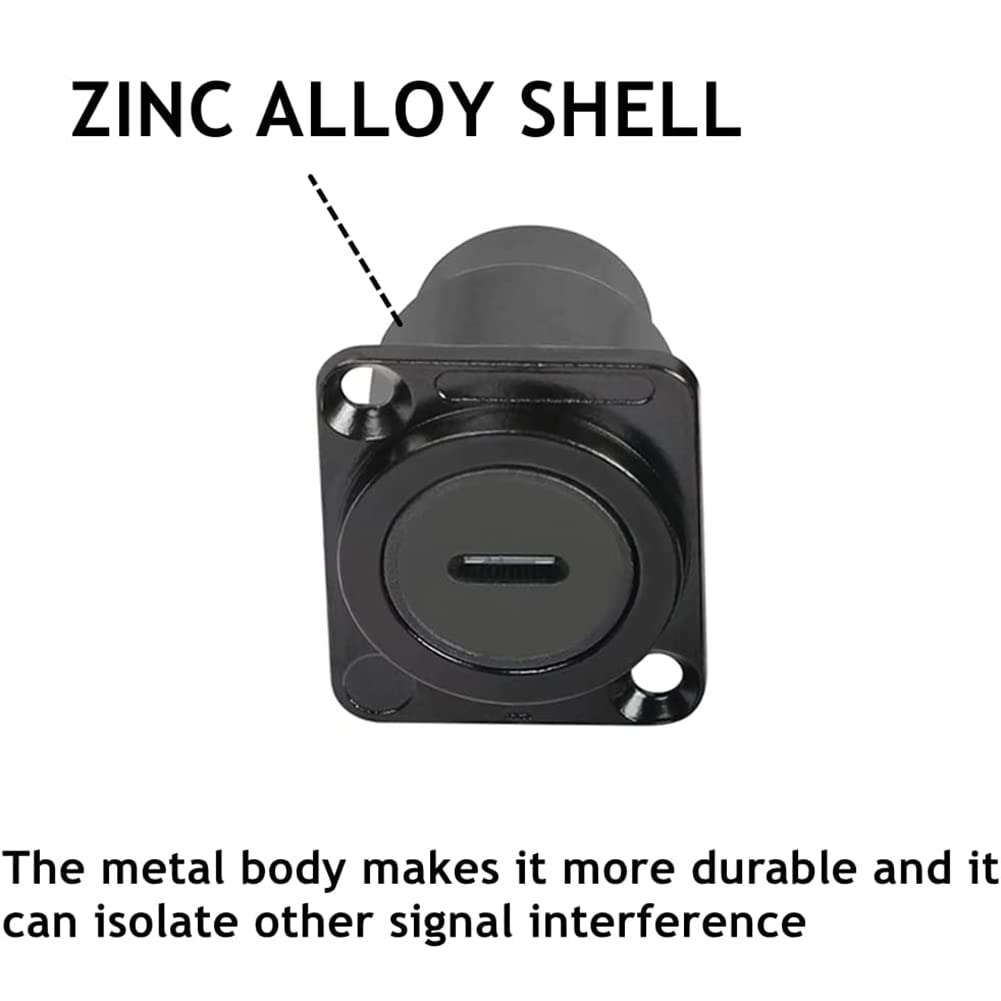

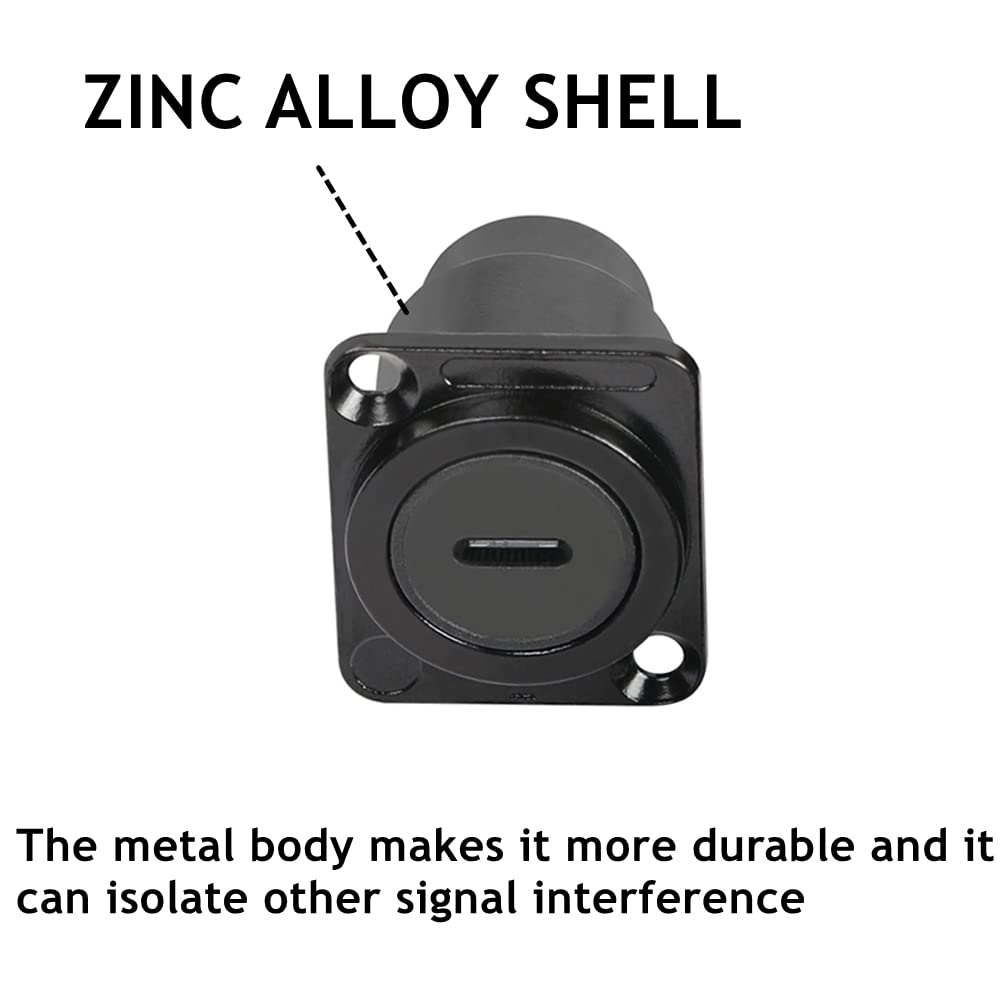

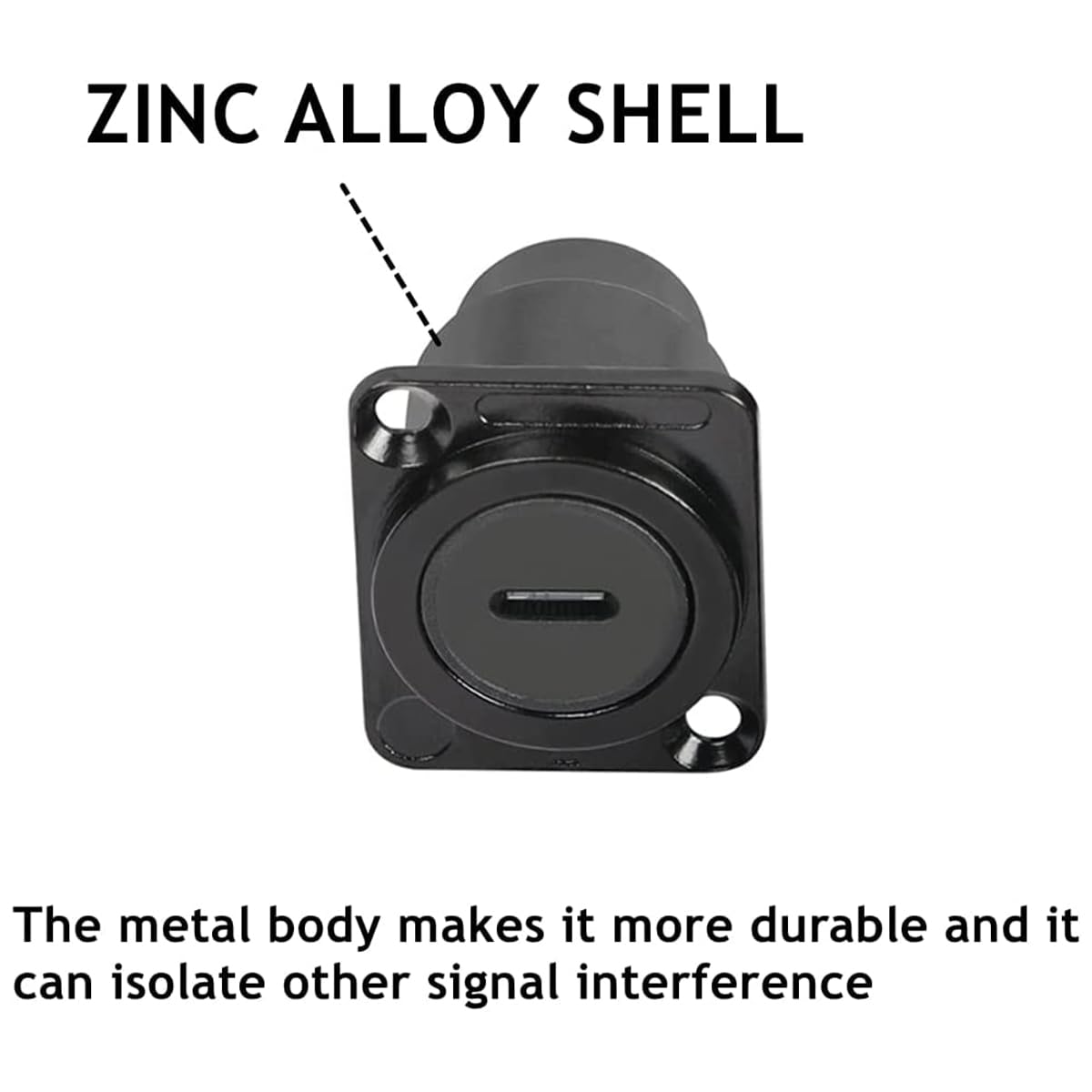

Strong zinc die-casting shell, Superior construction, long life and high reliability.

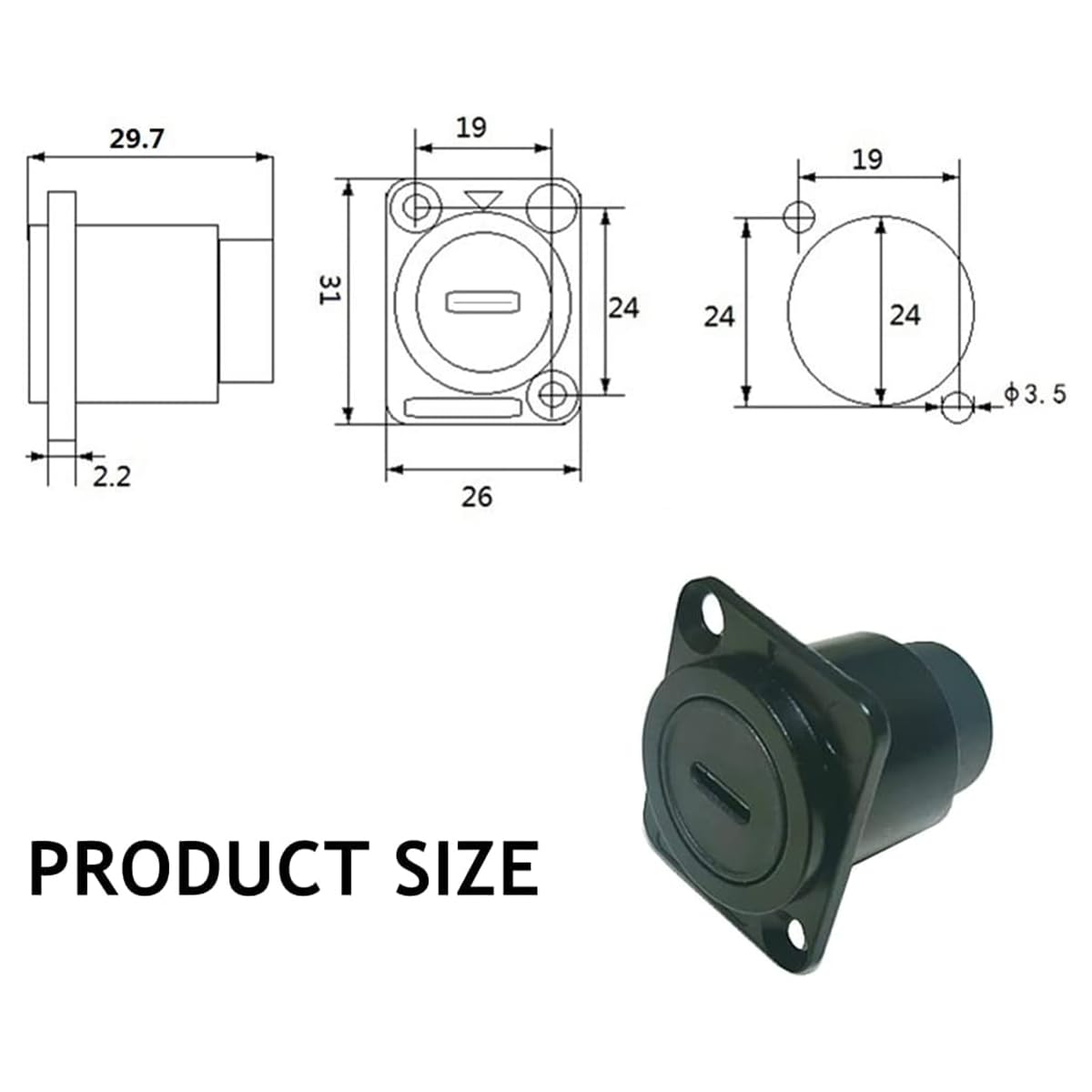

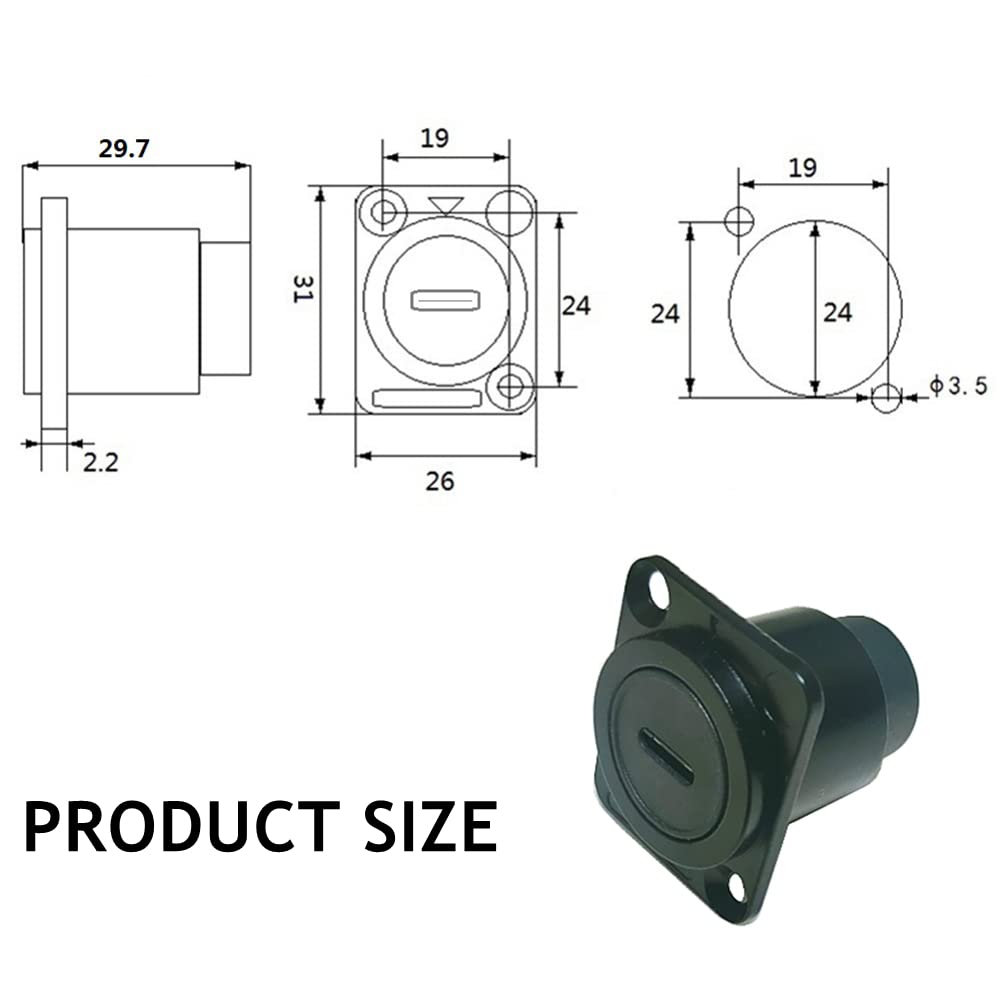

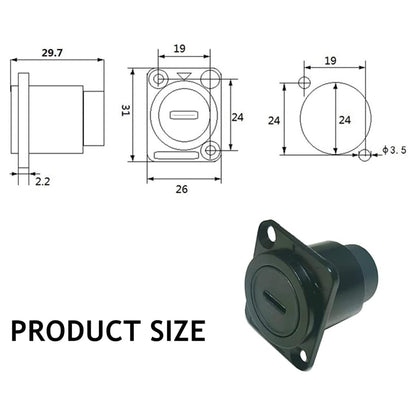

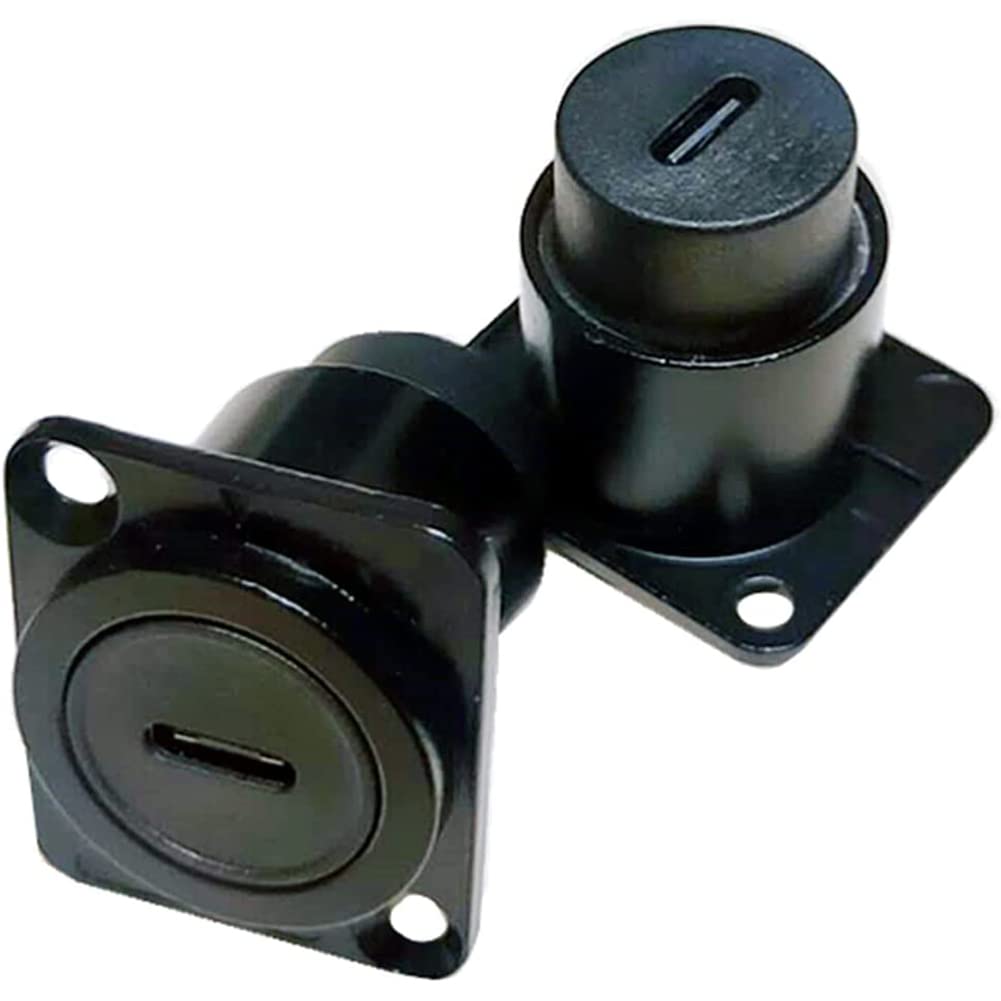

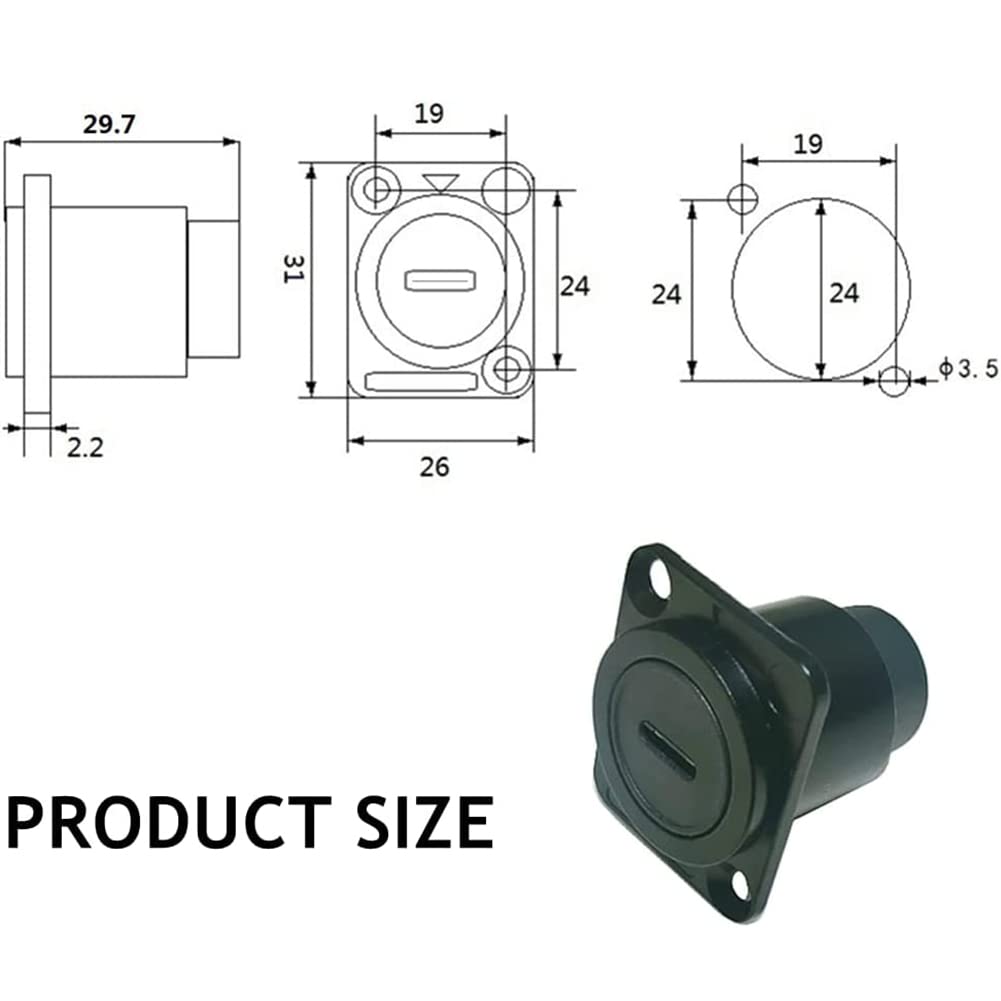

Standard D type installation size, which provides great convenience for engineering use.

Support USB hot swap, dedicated to solve the conversion and connection between USB interfaces.

	RJ45 Panel Mount Shielded Connector	USB Panel Mount Coupler	Panel Mount D-Type HDMI Coupler	Round Panel Mount USB Coupler	Panel Mount D-Type RJ45 Coupler	Waterproof USB Panel Mount
		Buying Options			Buying Options
Customer Reviews	154	18	111	190	2	71
Price	$43.99	$14.99	$44.99	$15.99	— no data	$16.99

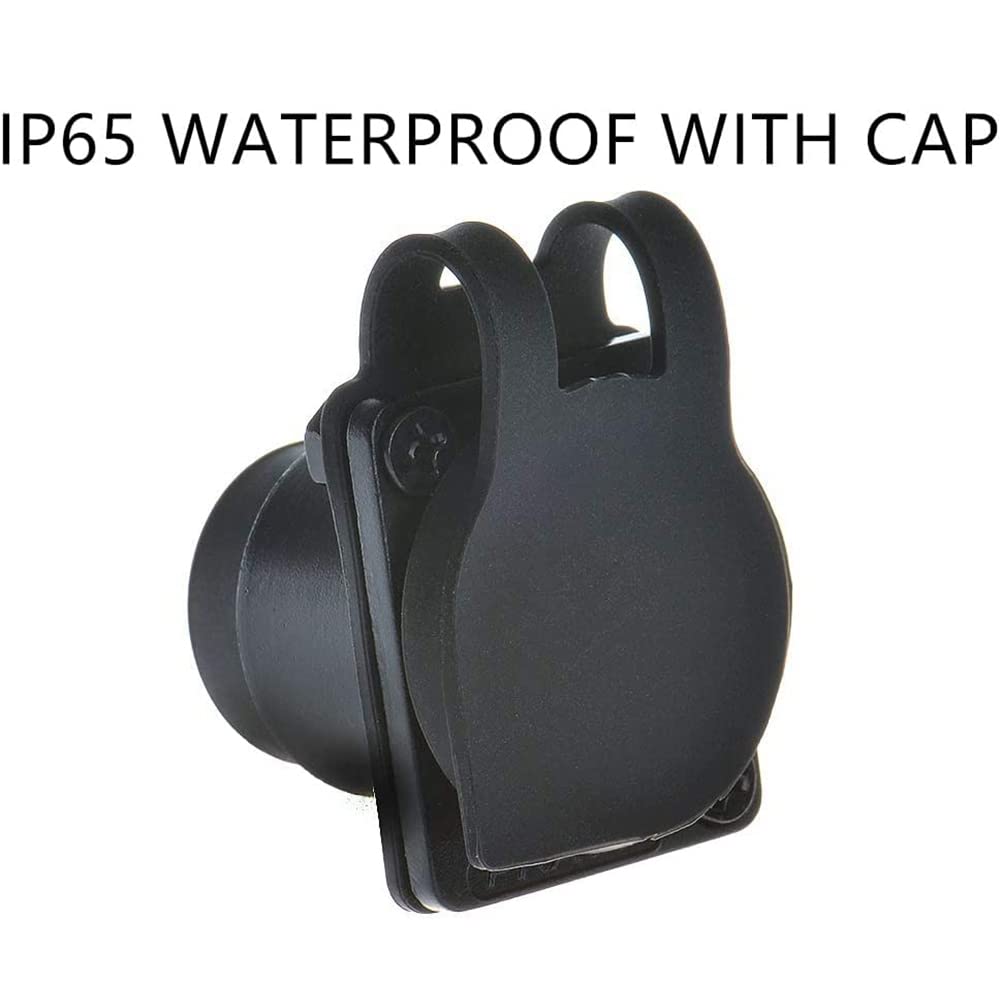

Waterproof Grade	IP65 With cap	IP65 With cap	IP65 With cap	IP65 With cap	No	IP67 With cap
Shielded	✓	✓	✓	✓	No	✓
No Installation required	Easy Installation	Easy Installation	Easy Installation	No	Easy Installation	No
Material	Zinc alloy	Zinc alloy	Zinc alloy	Zinc alloy	ABS Plastic	PA6BG33

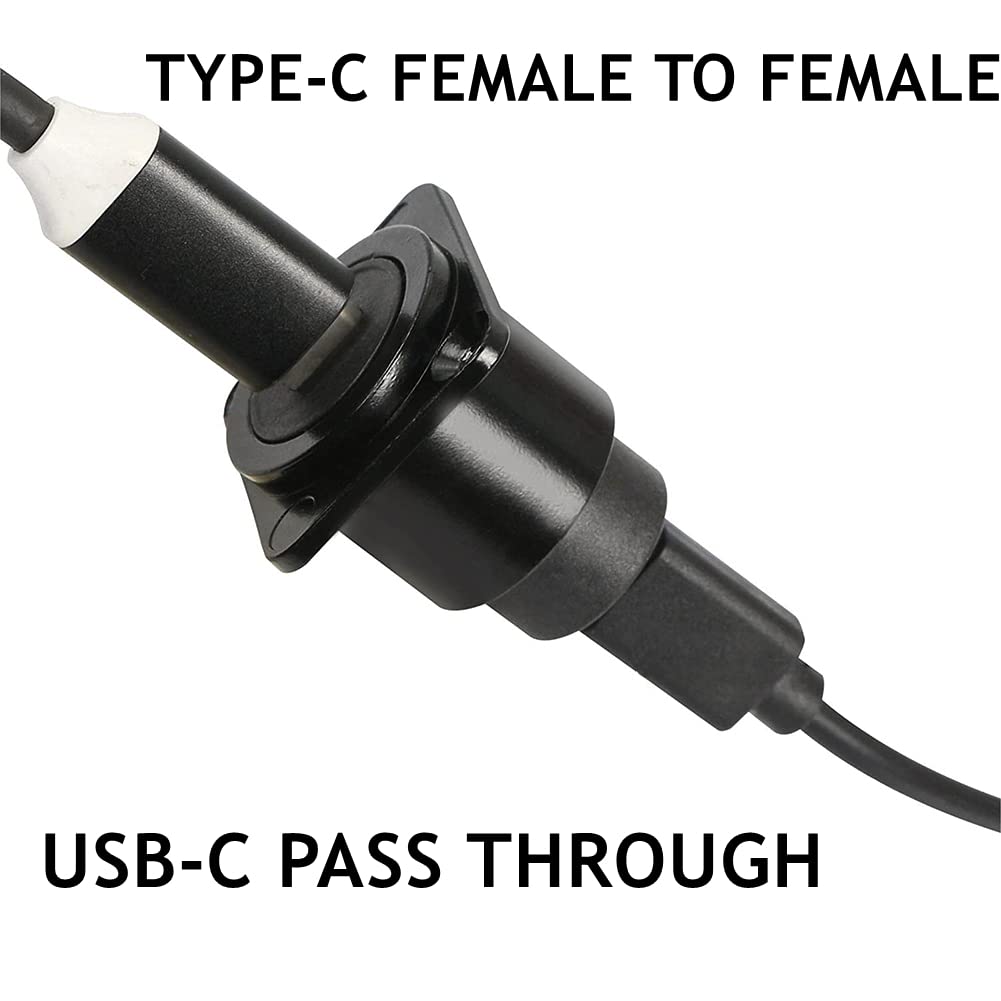

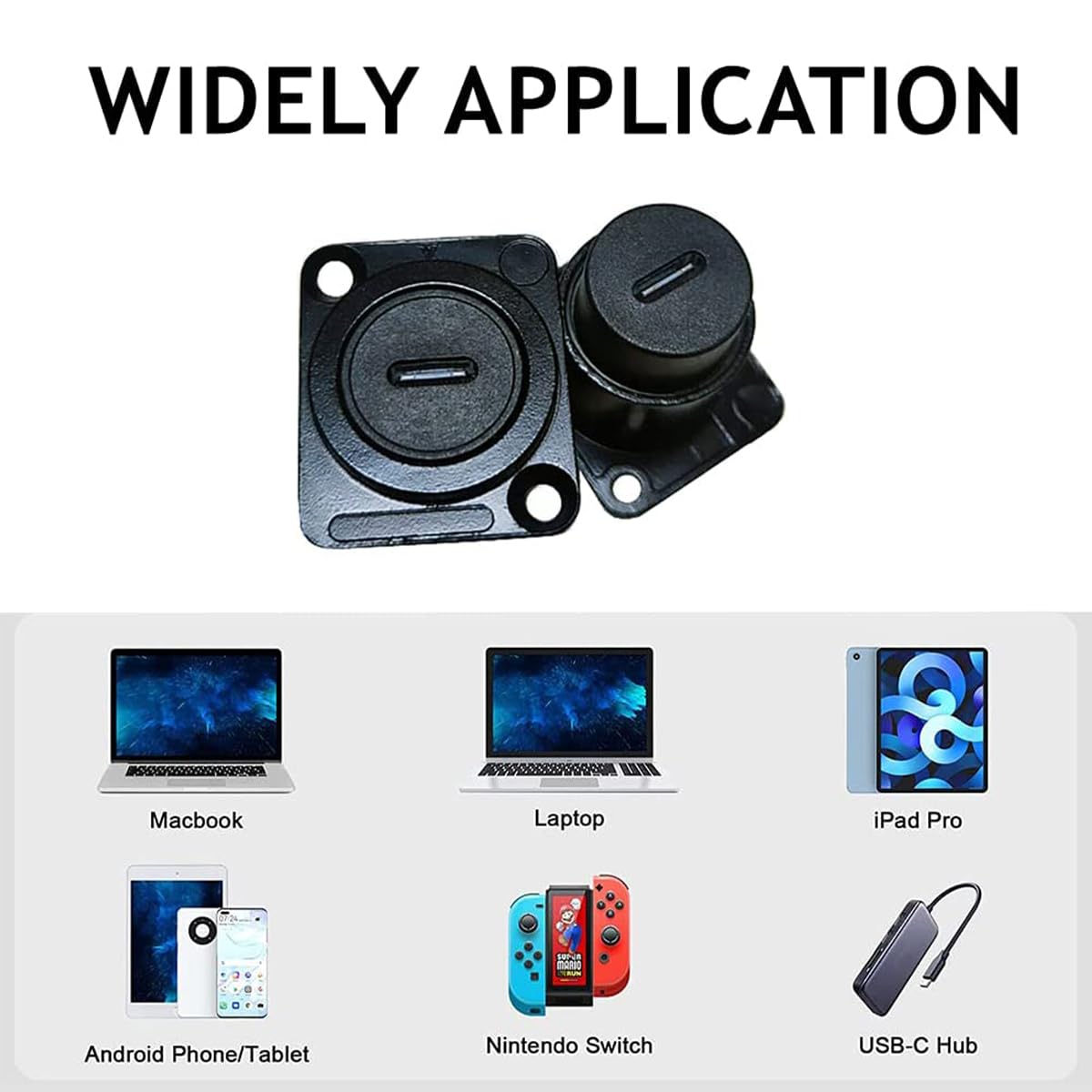

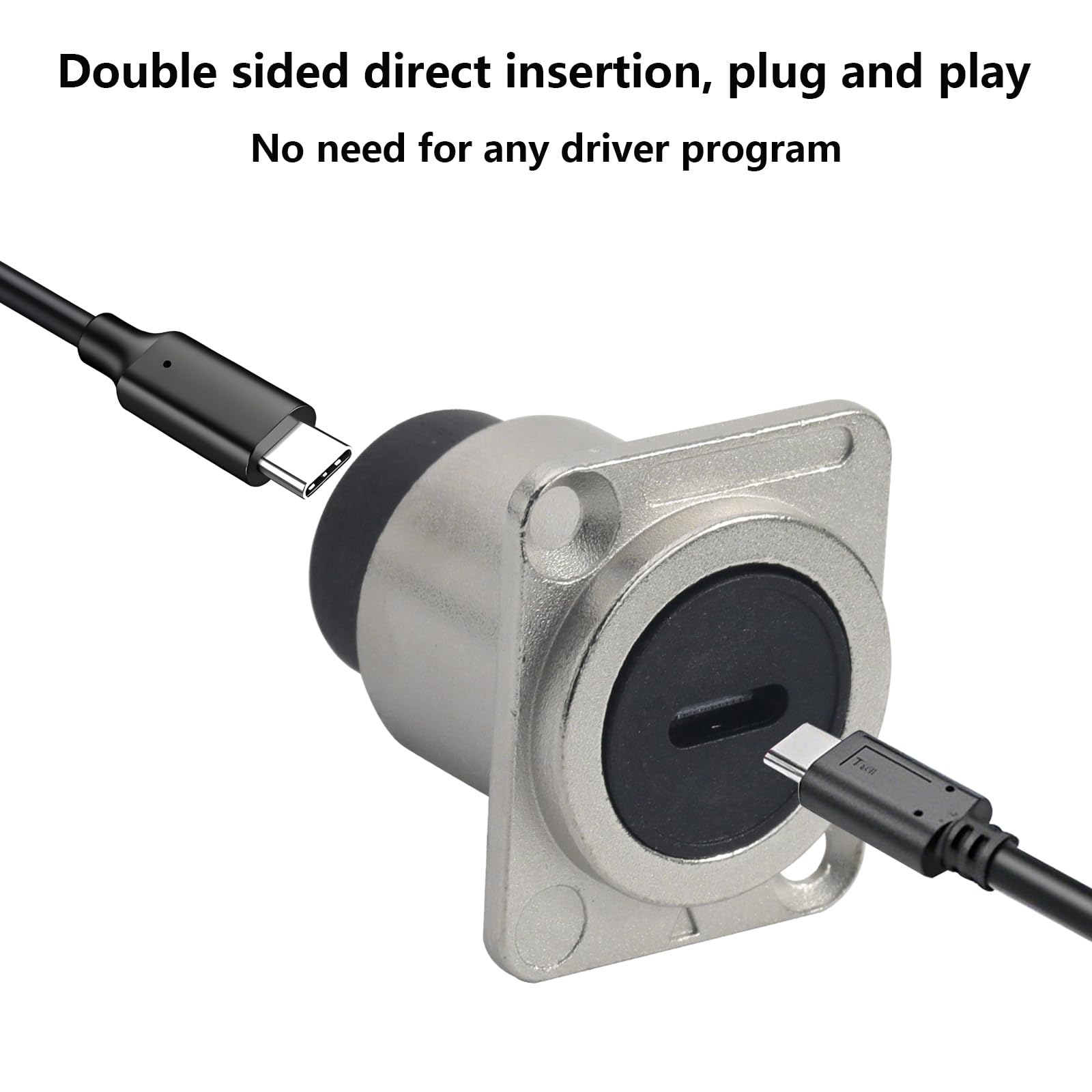

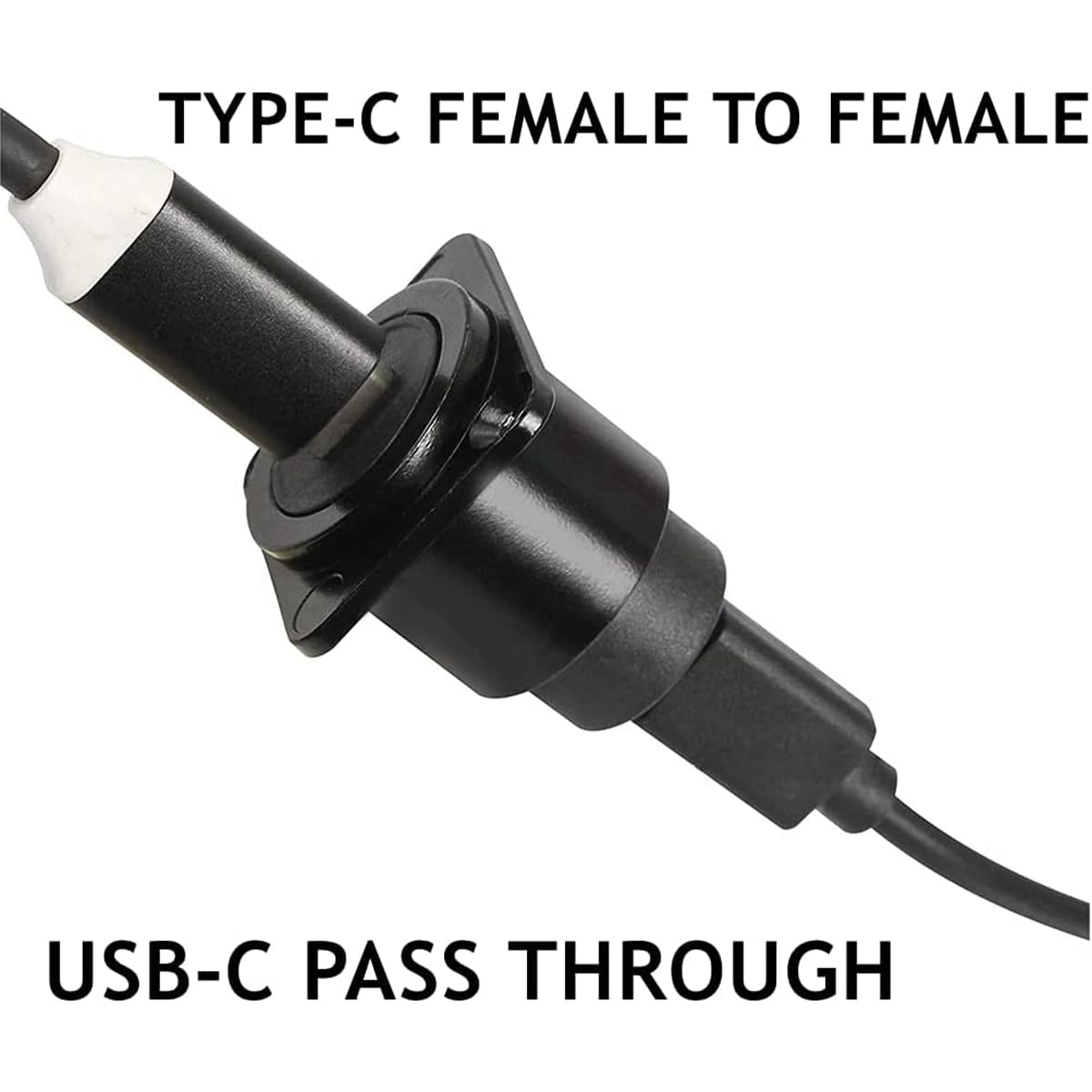

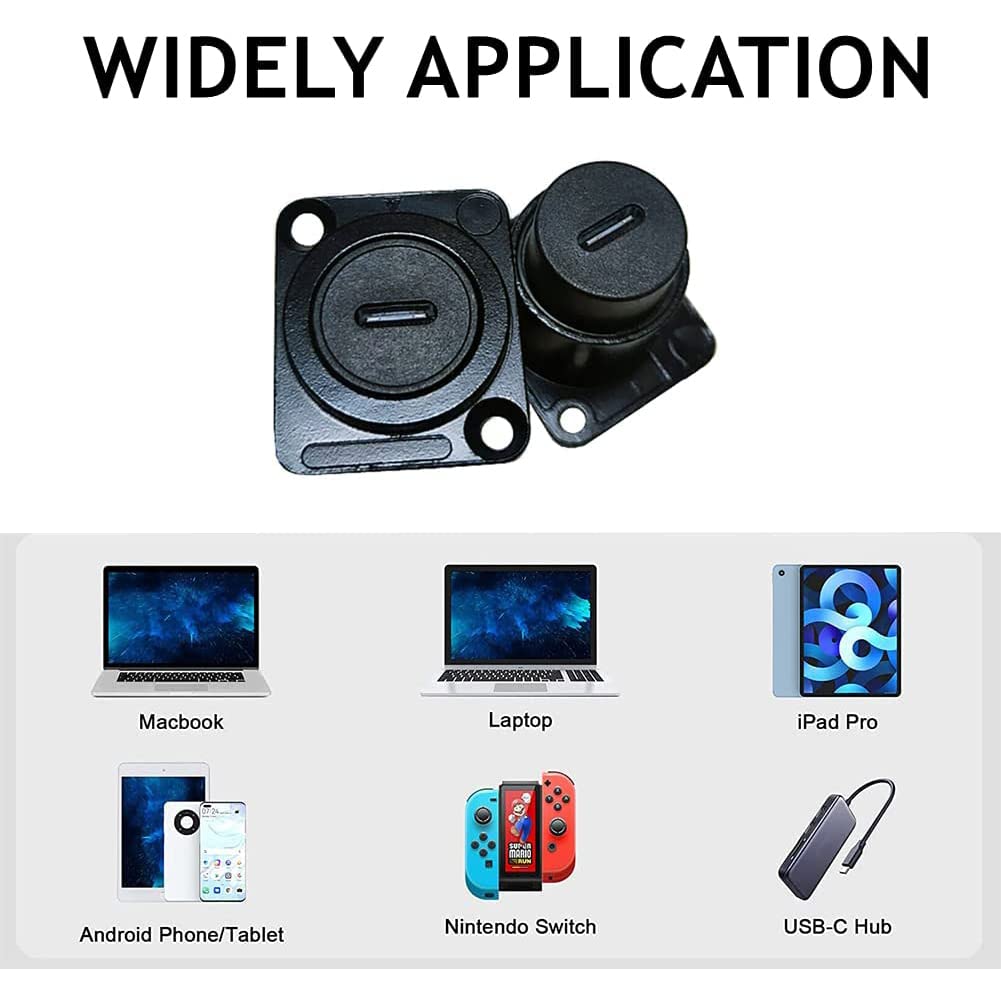

【TYPE-C COUPLER】Female port for connecting other device, or joins two USB cables together and extends the overall reach.

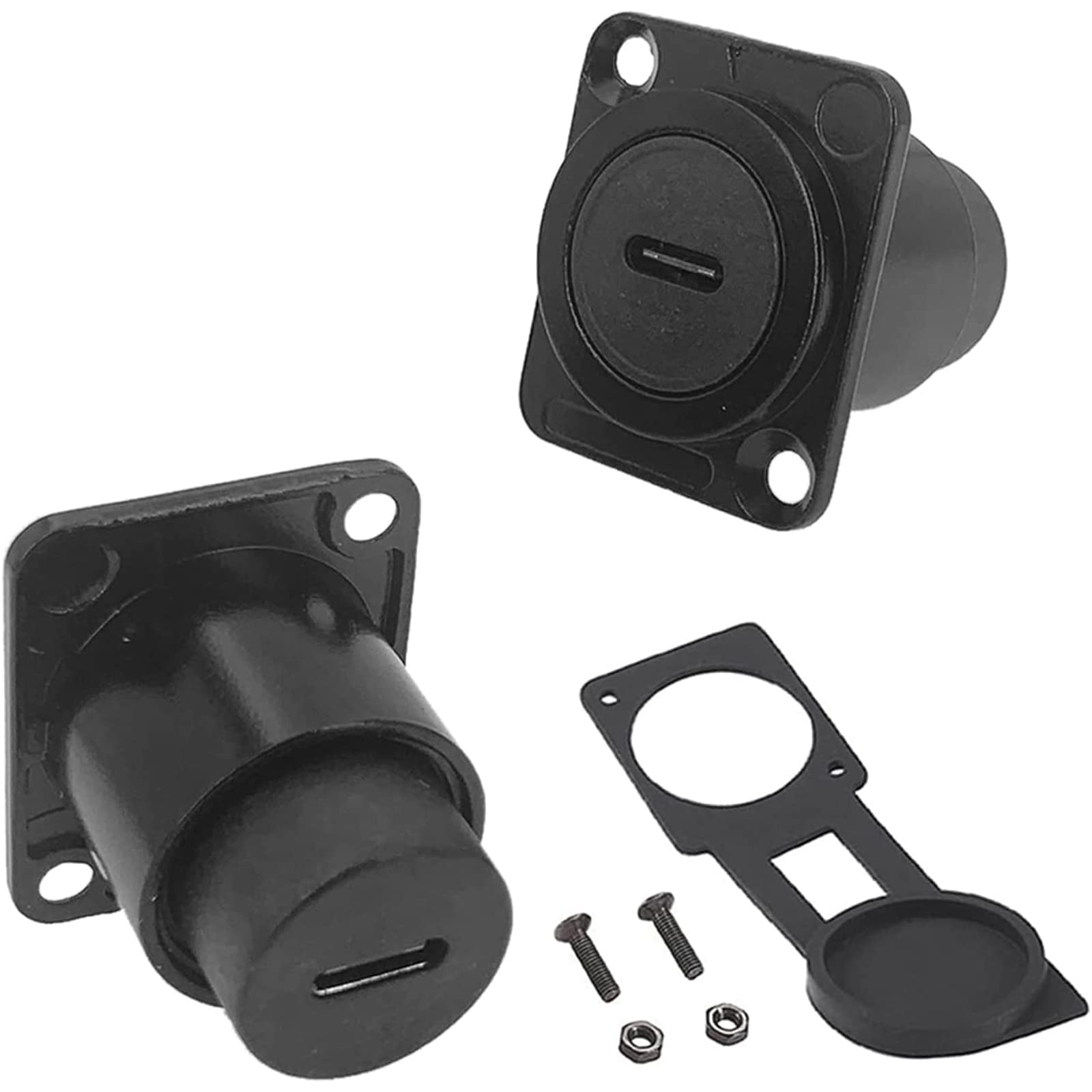

【EASY INSTALLATION】 Standard D-Series Connector for Panel Mount Installations, USB female to female field installable coupler, no soldering, no installation tools. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on. Guarantee the stability of the current.

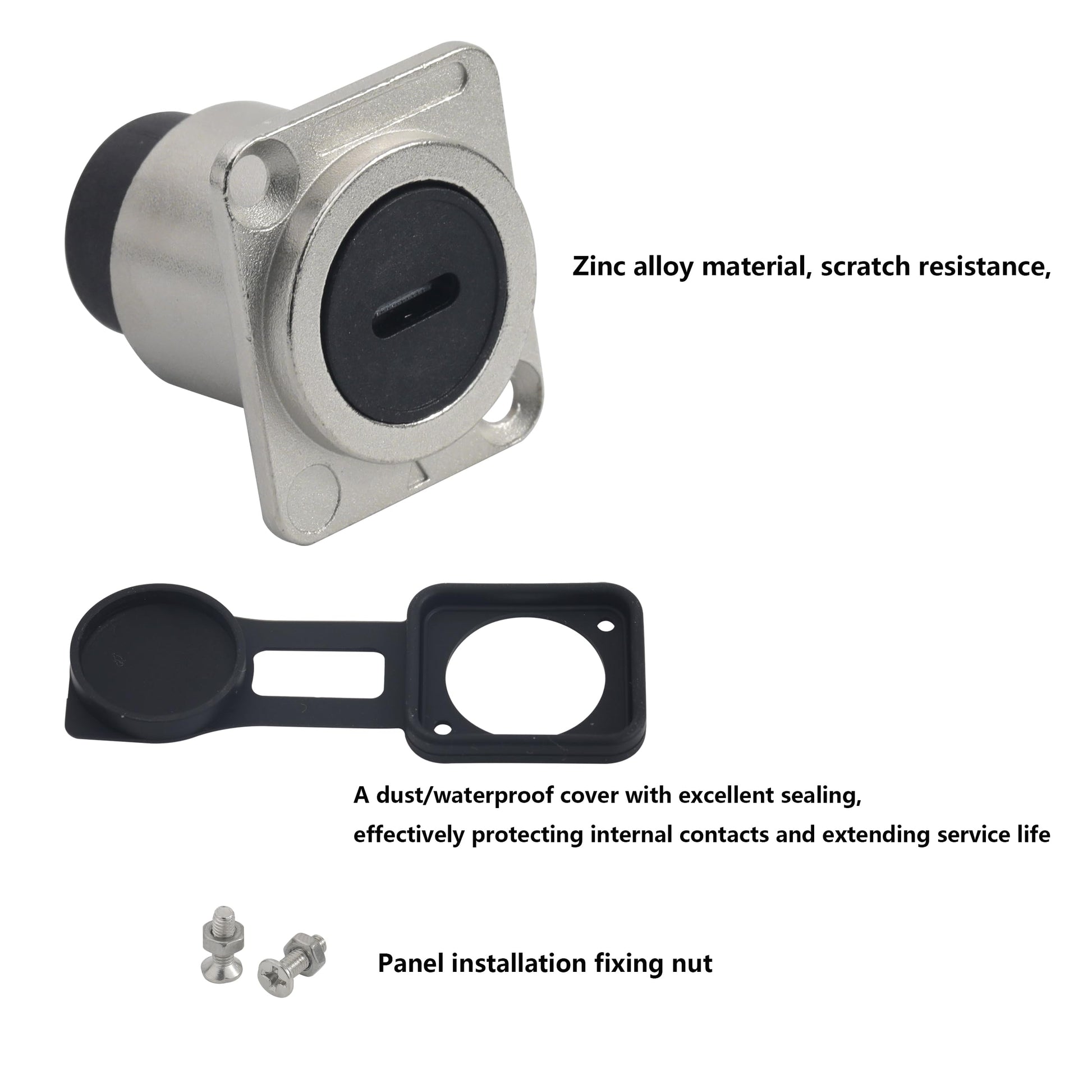

【DURABLE QUALITY】 Zinc alloy material, scratch resistance, superior construction for reliable connectivity of the USB 3.1extender.
【NOTE1】 Please be advised that if you try coupling 2 cables for a total length that’s longer than 6FT/1.8M, you could run into data, and or power issues. If this happens, we advise coupling shorter USB Type C Cable(s) and make sure they are Type C 3.1.
【NOTE2】: Since the USB 3.1 standard needs to be backward compatible with USB 2.0, every time this kind of USB Type-C female to female adapter is connected, there is a 50% chance that it will be non-functional. Just unplug, reverse one side, insert again, solve. This is an industry standard issue, not a quality issue.
