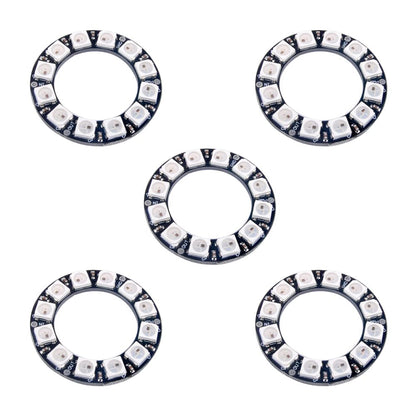

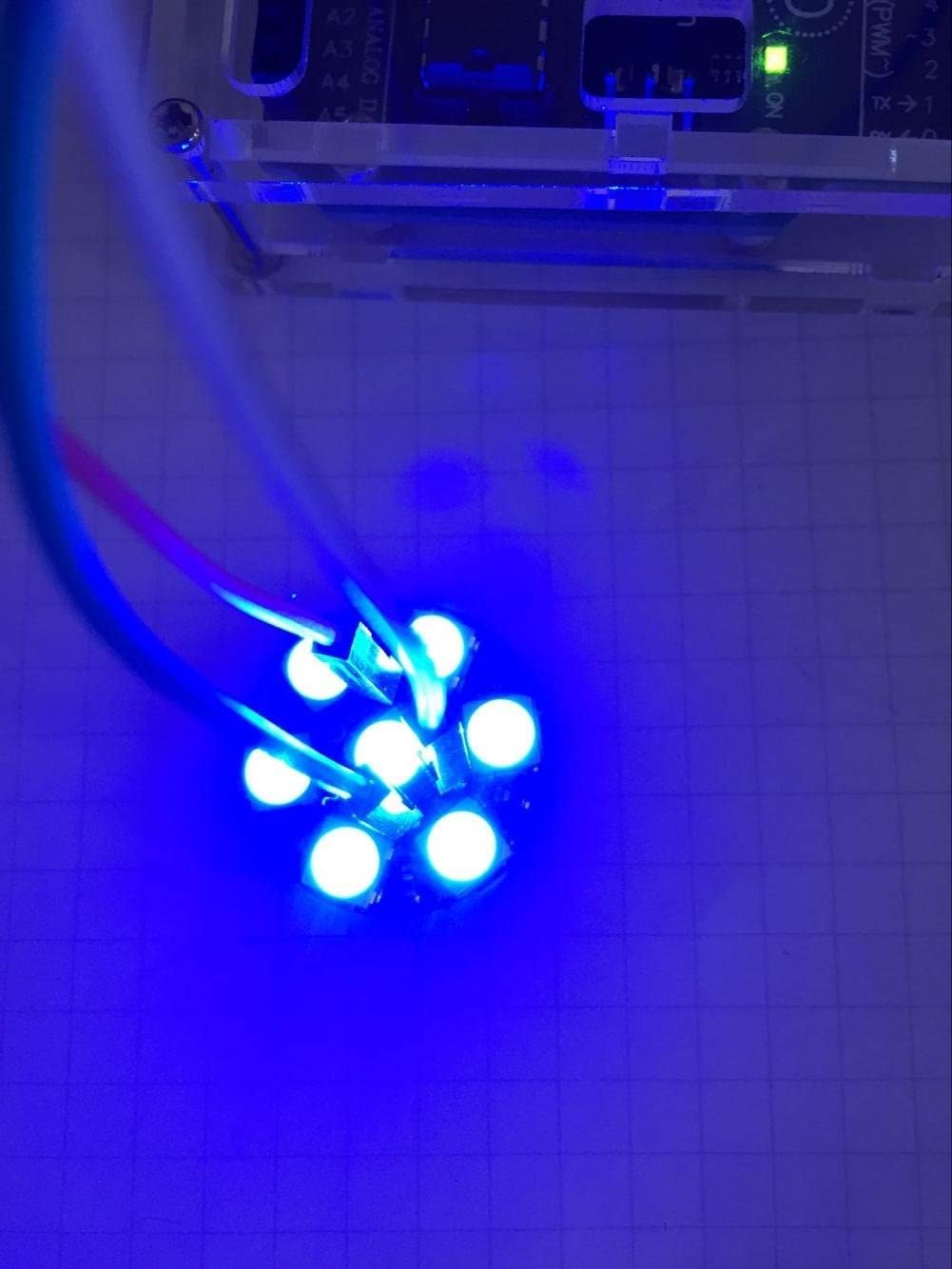

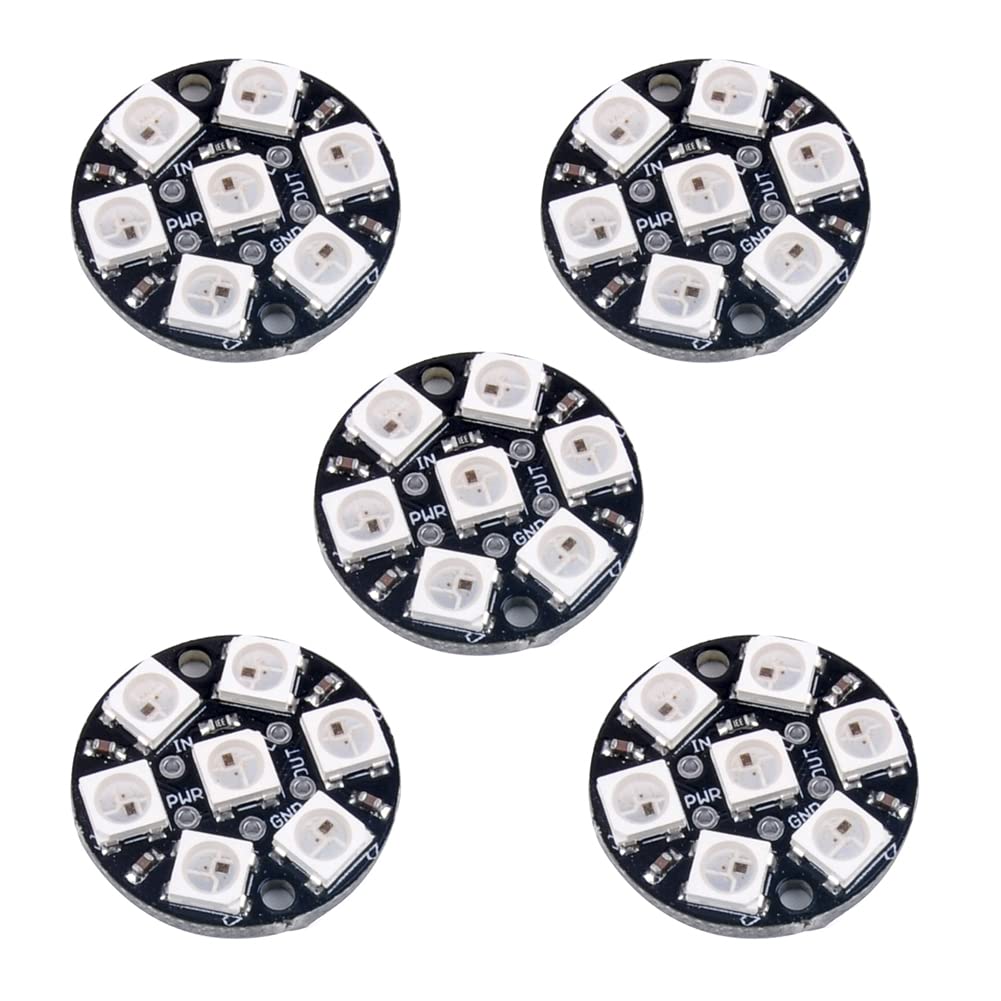

7 X WS2812B RGB LED Rings 7 Bits 5050 Lamp Light with Integrated Drivers, Full Color, Individually Addressable for Arduino ESP8266 Raspberry Pi ESP32 (Pack of 5pcs)

$15.99 USD

~~$15.99 USD~~ $15.99 USD

Sale Sold out

Shipping calculated at checkout.

Color 7 Bits 24 Bits 16 Bits 12 Bits

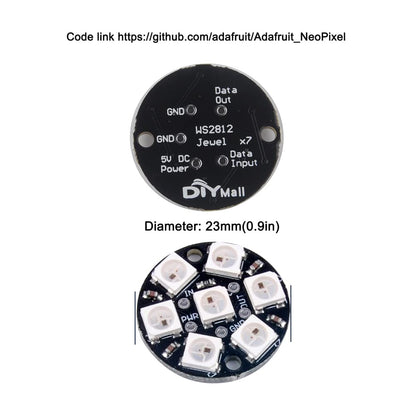

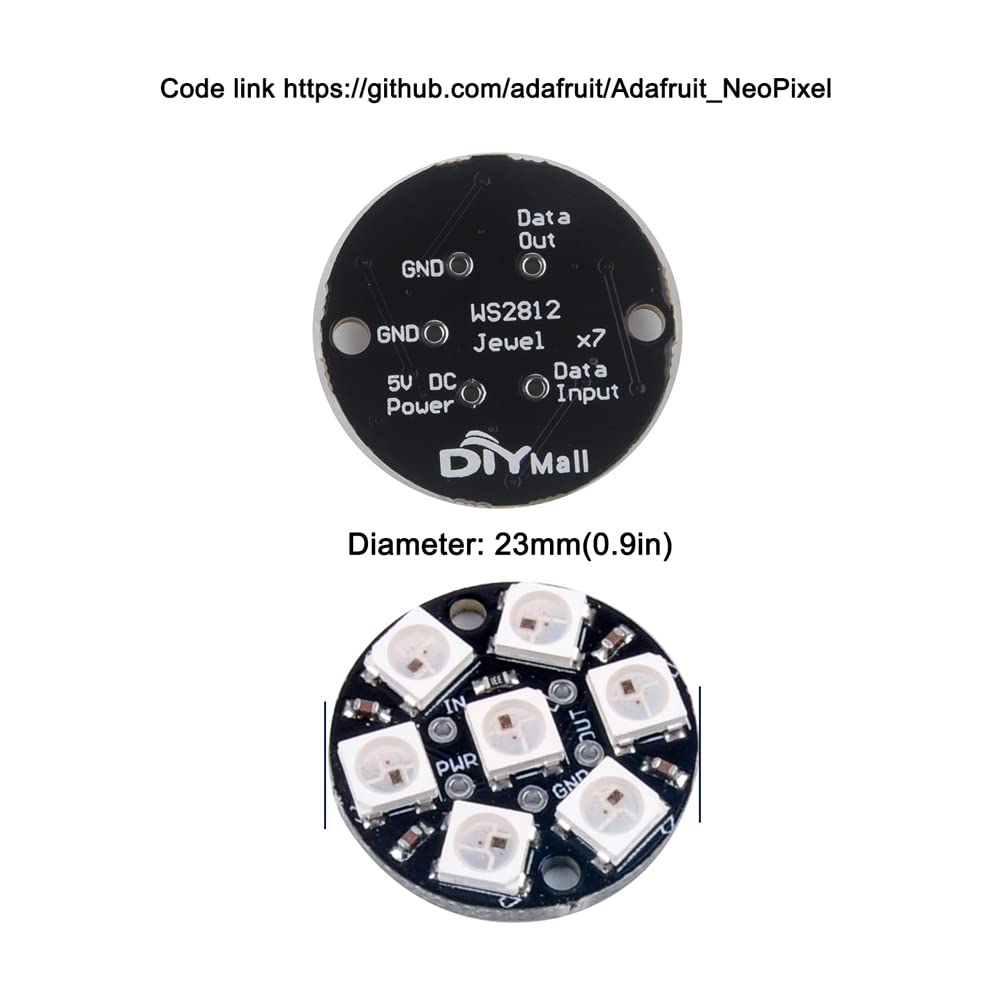

Diamter: 23mm/0.9''

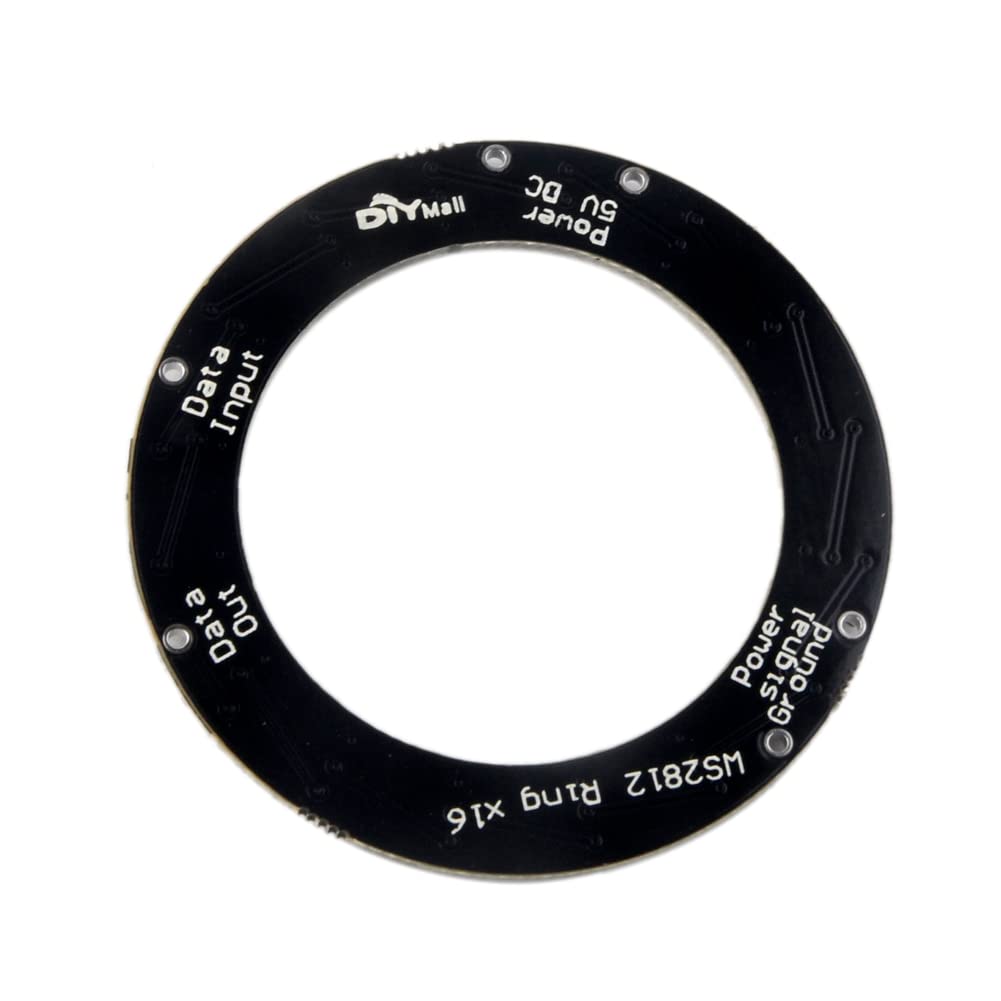

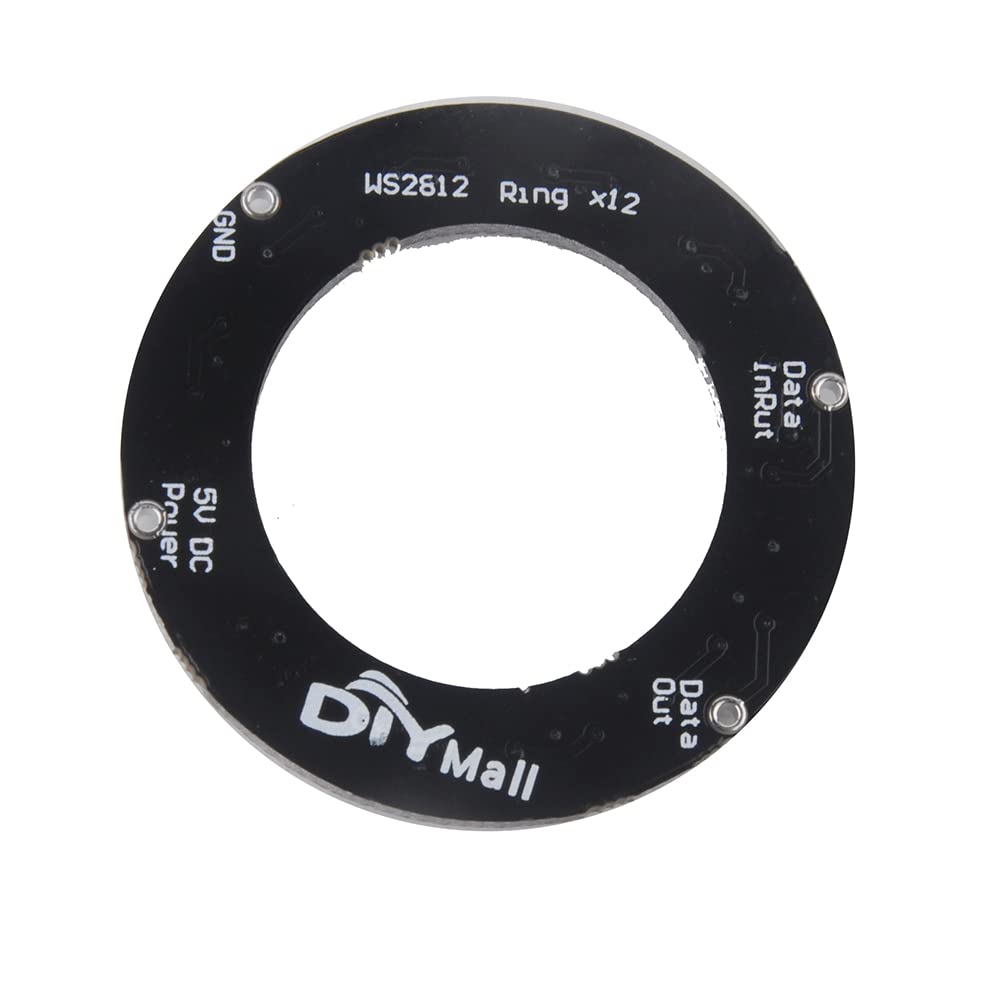

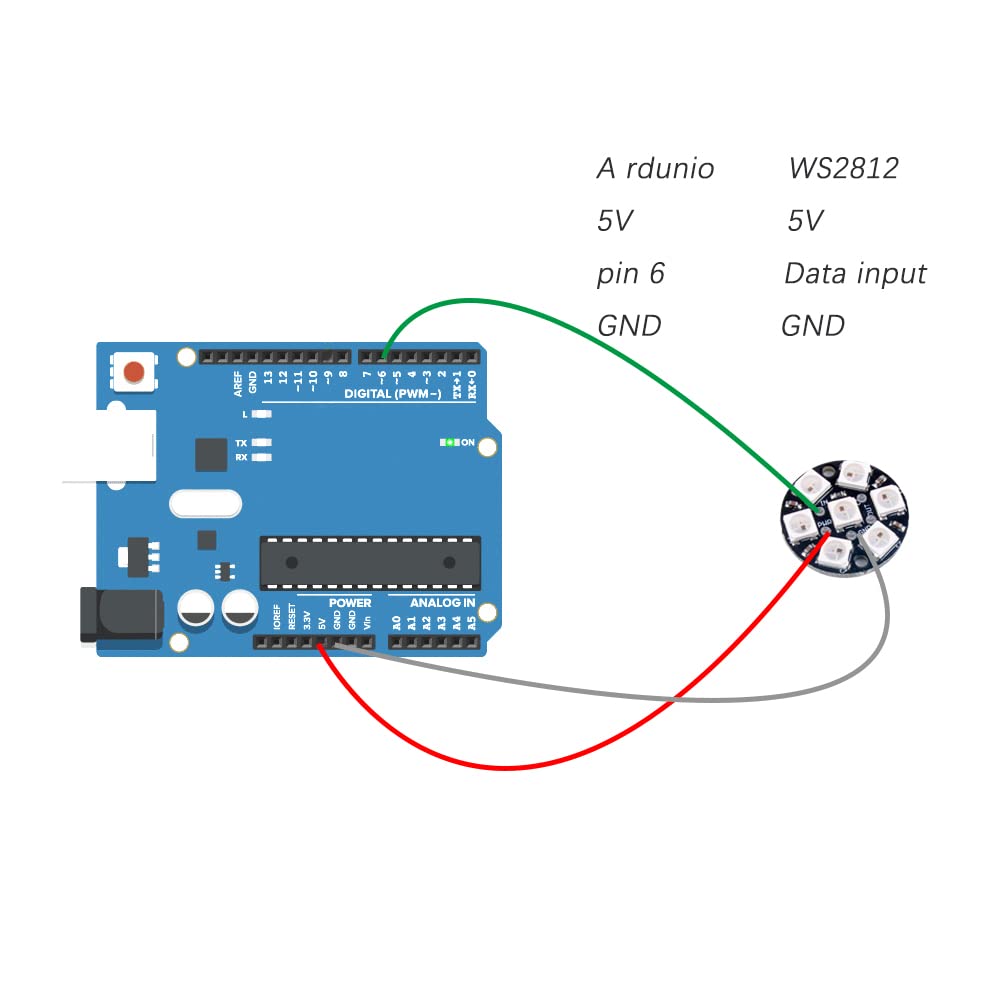

At the back side, it has Data Input, Data Output, GND and PWR +5V

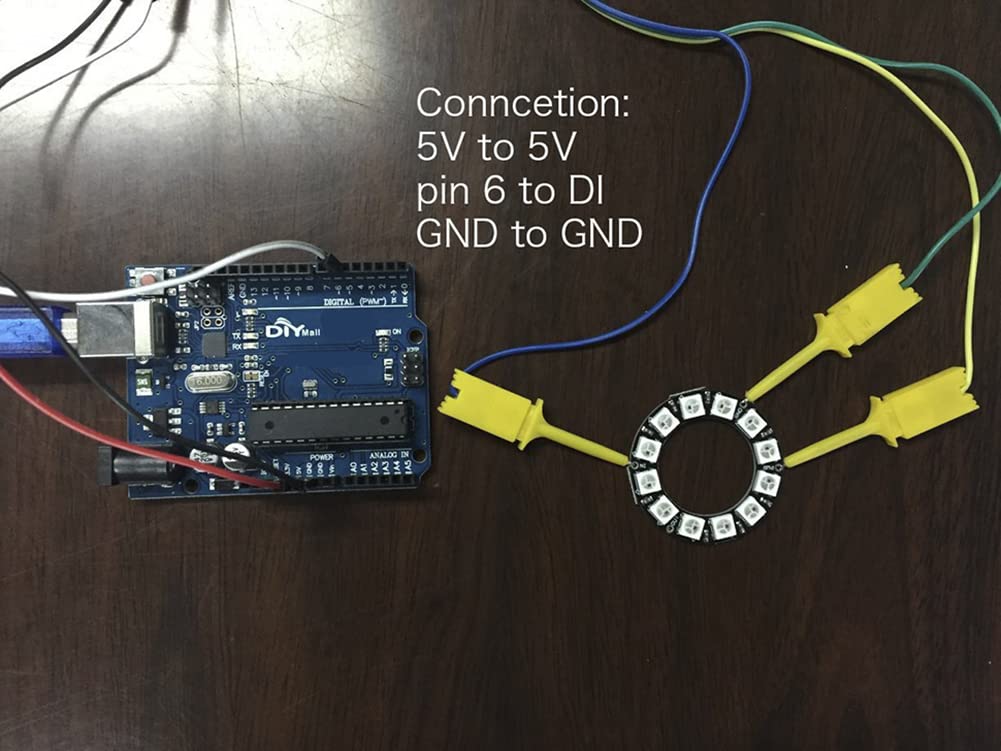

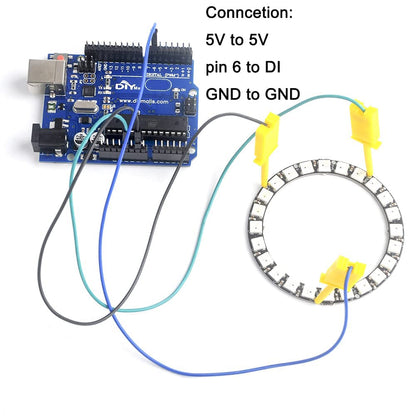

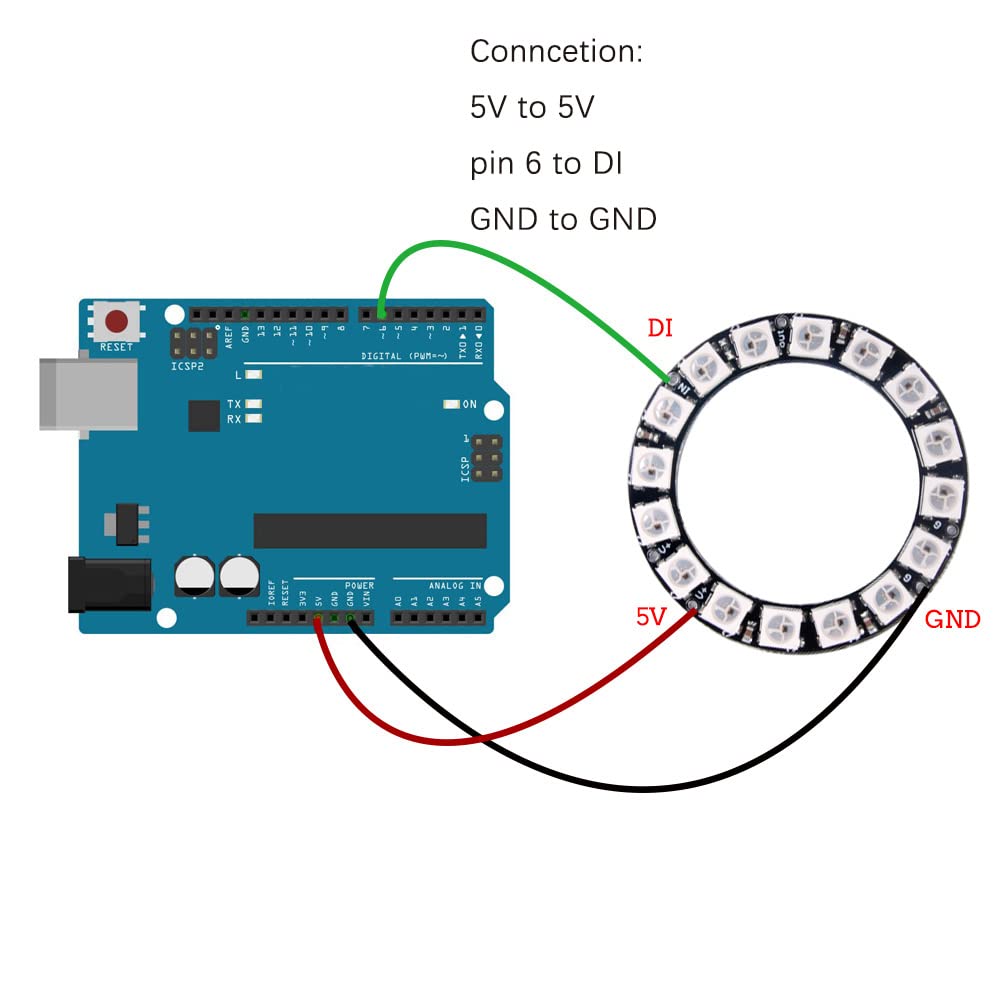

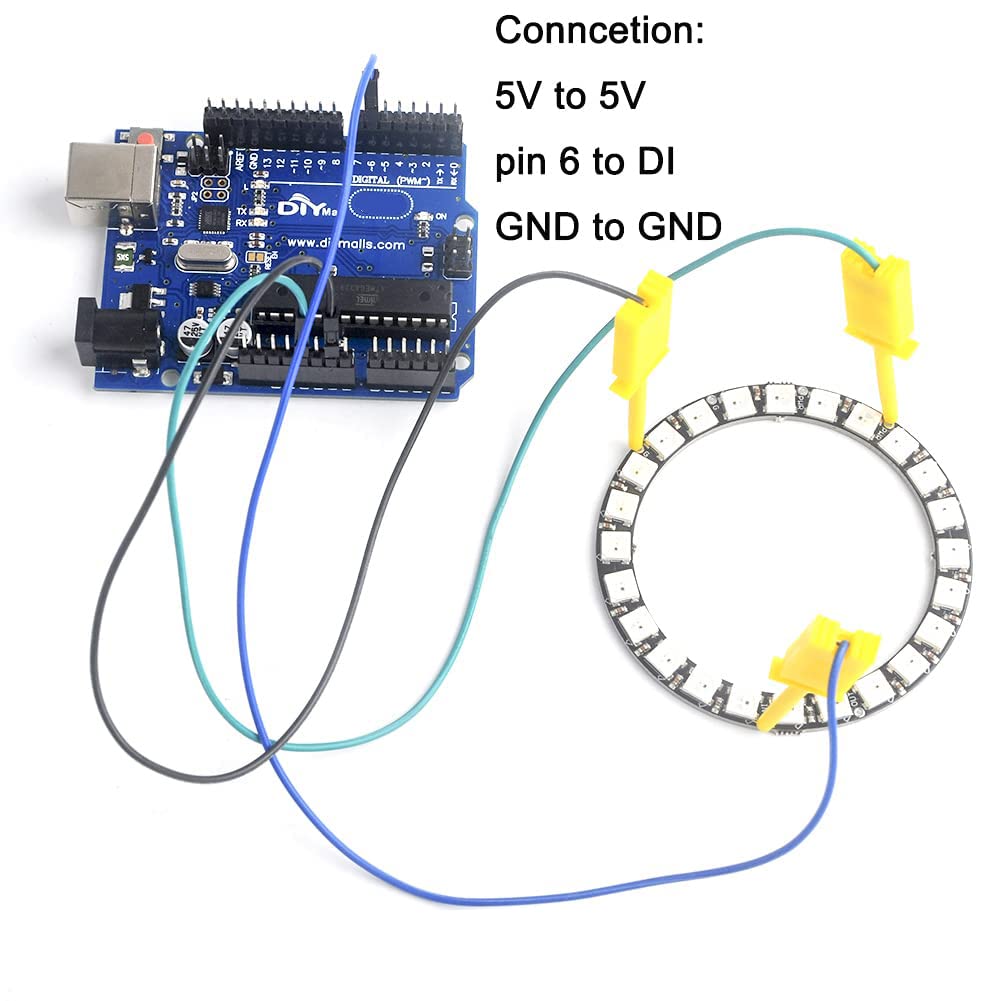

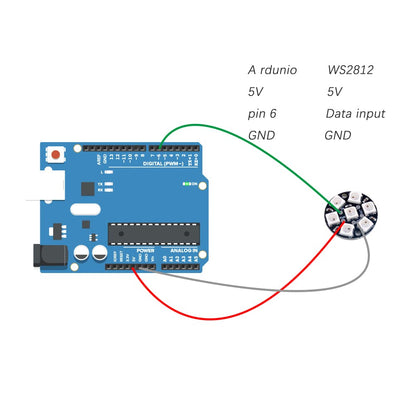

5V to 5V

GND to GND

Data Input to D6

Code: you can download Neo-Pixel code on github

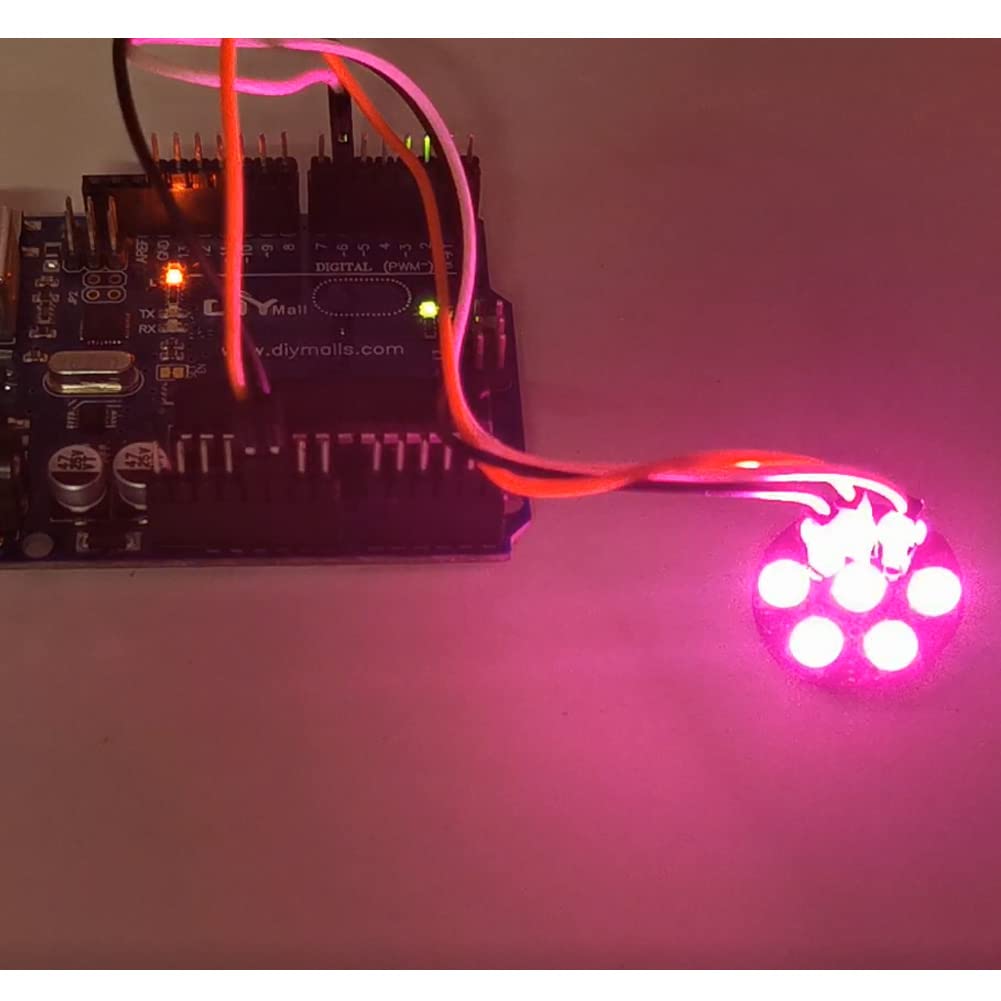

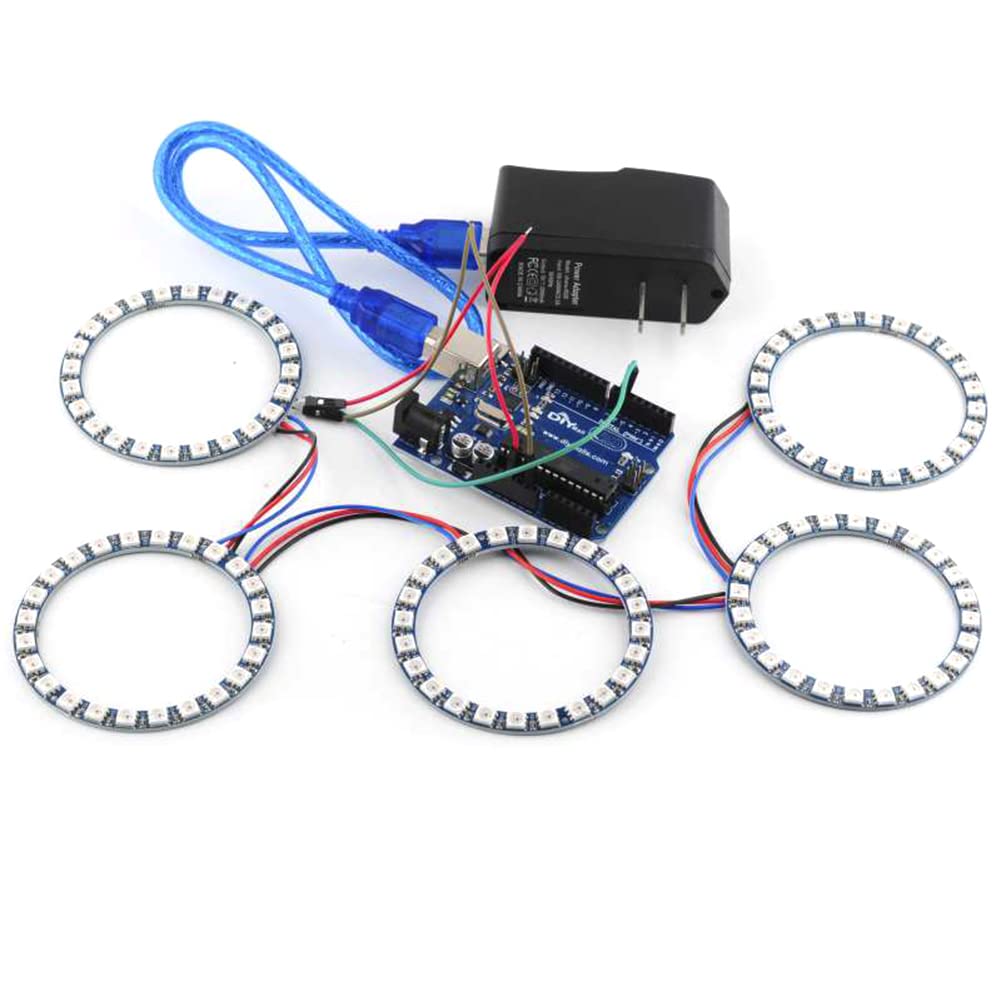

This RGB LED ring can work with AVR, Arduino, Raspberry Pi, PIC, mbed etc.

You can revise the adafruit code to change the colors, brightness etc.

RGB LED Ring

- Voltage: DC4-7V

- Communication interface: Single-wire communication

- LED Chip: WS2812B

- LED Numbers: 7

	7bits WS2812B RGB LED Ring	12bits WS2812B RGB LED Ring	16bits WS2812B RGB LED Ring	24bits WS2812B RGB LED Ring	60 WS2812B RGB LED Ring	8 RGB LED Stick 8 X WS2812

Customer Reviews	50	50	50	50	6	25
Price	$6.69	$6.99	$8.68	$9.59	$14.99	$18.99
LED Numbers	7	12	16	24	60	8

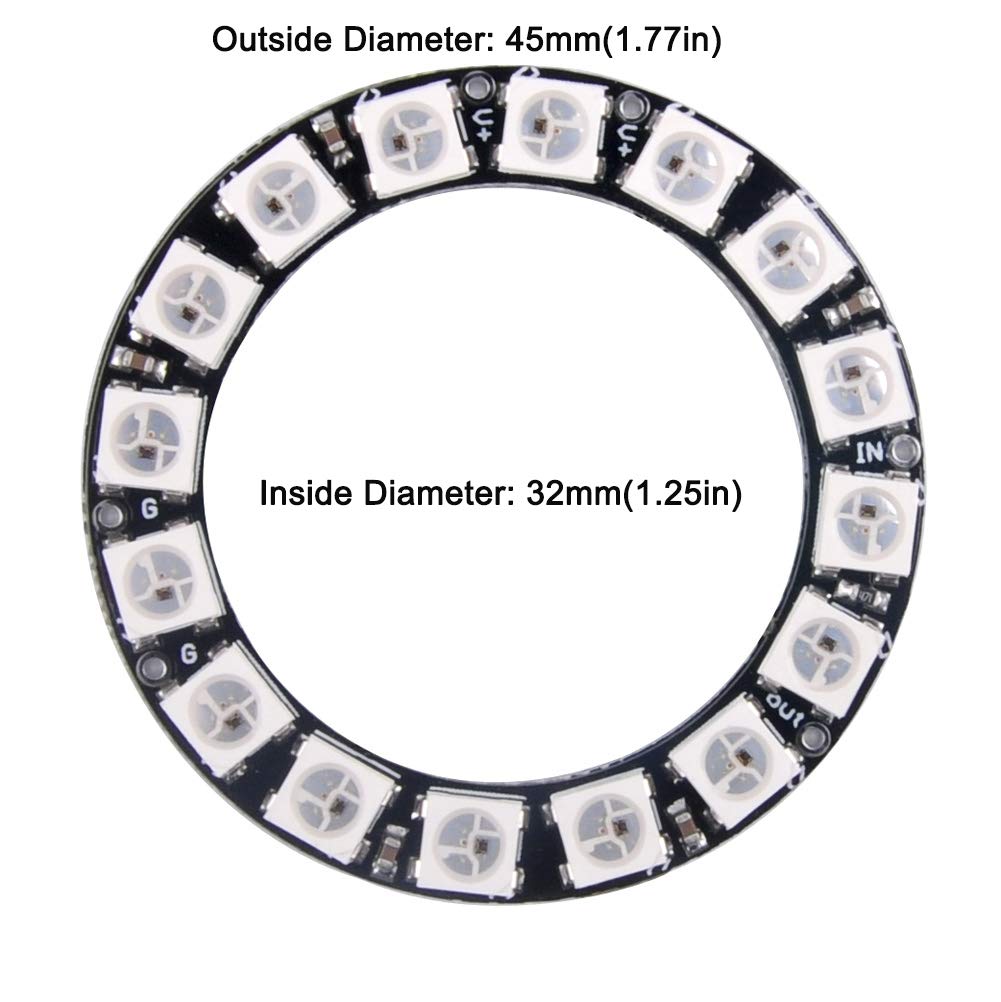

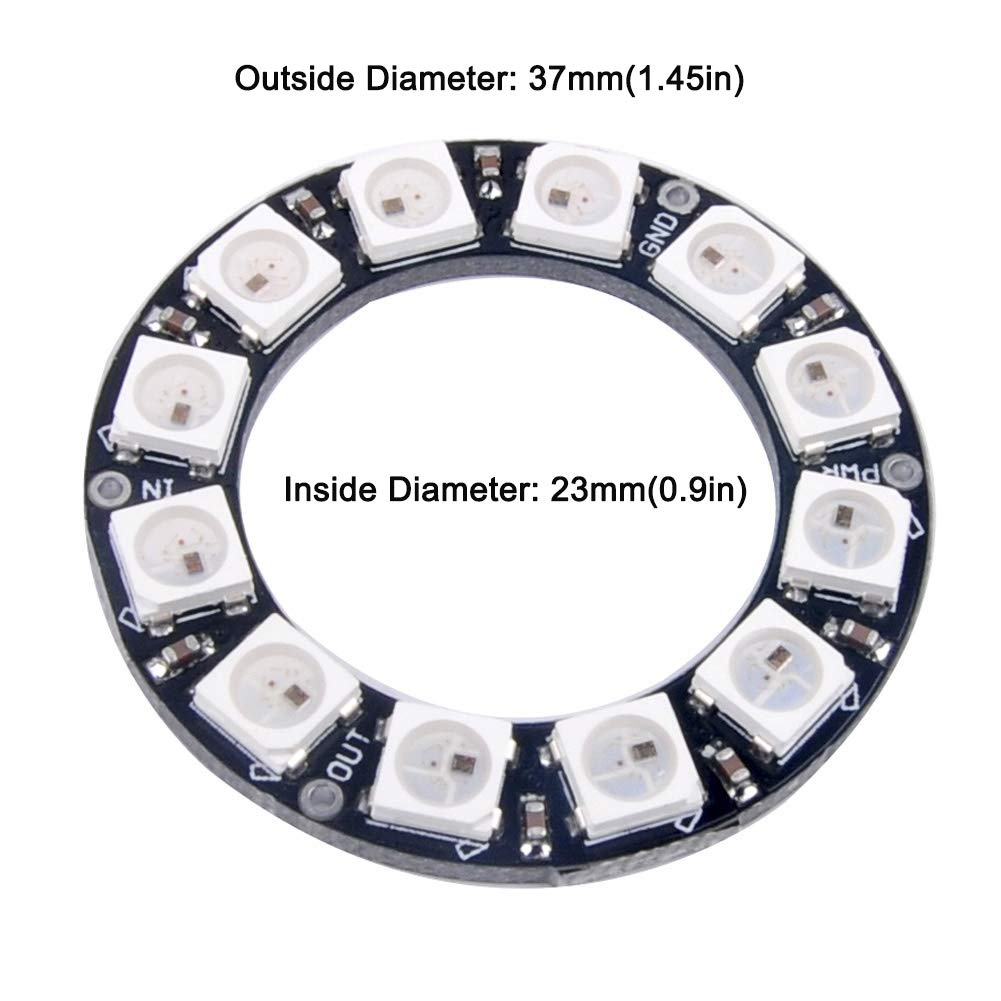

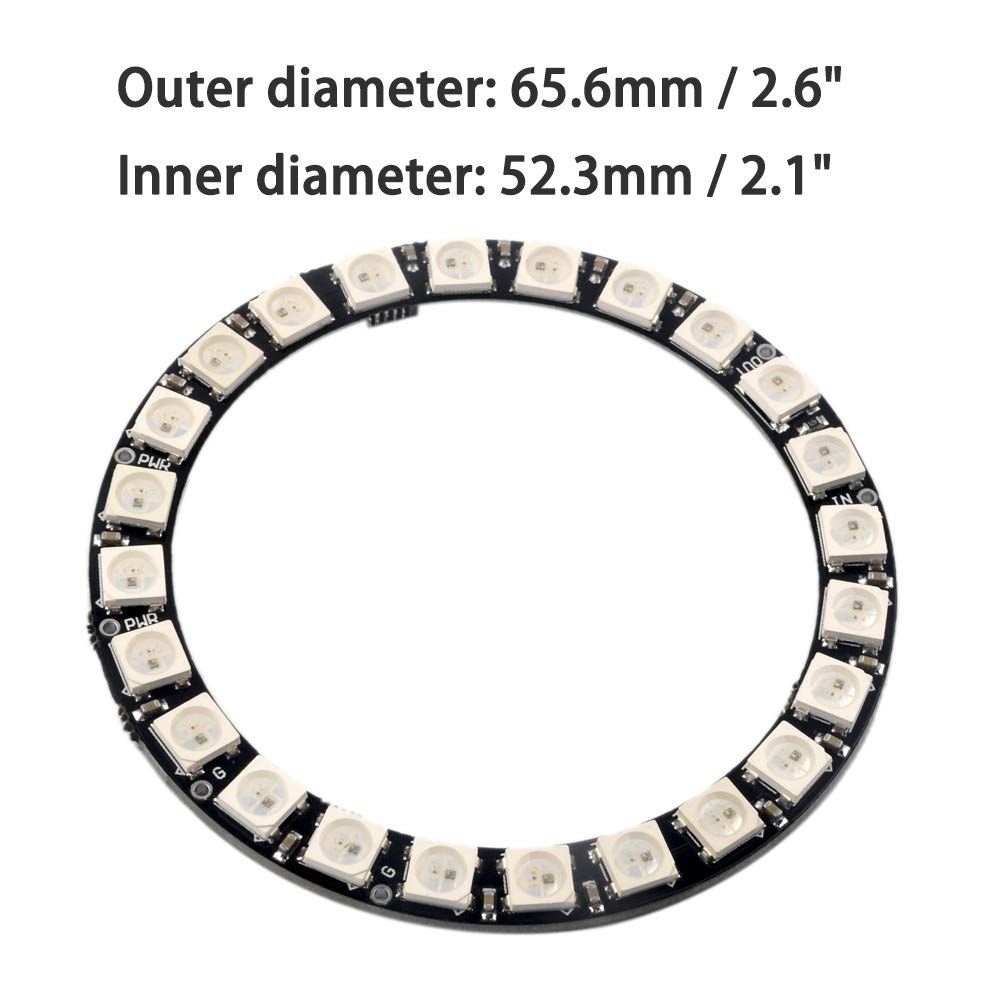

Outer diameter	23mm	37mm	45mm	66mm	160mm	L: 54mm; W: 10mm
Inner diameter	no data	23mm	32mm	52mm	146mm	no data
Voltage	DC4-7V	DC4-7V	DC4-7V	DC4-7V	DC4-7V	DC4-7V
LED Chip	WS2812B	WS2812B	WS2812B	WS2812B	WS2812B	WS2812B
Each LED Current(mA)	18	18	18	18	18	18

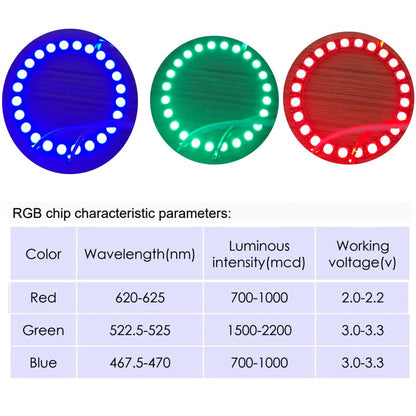

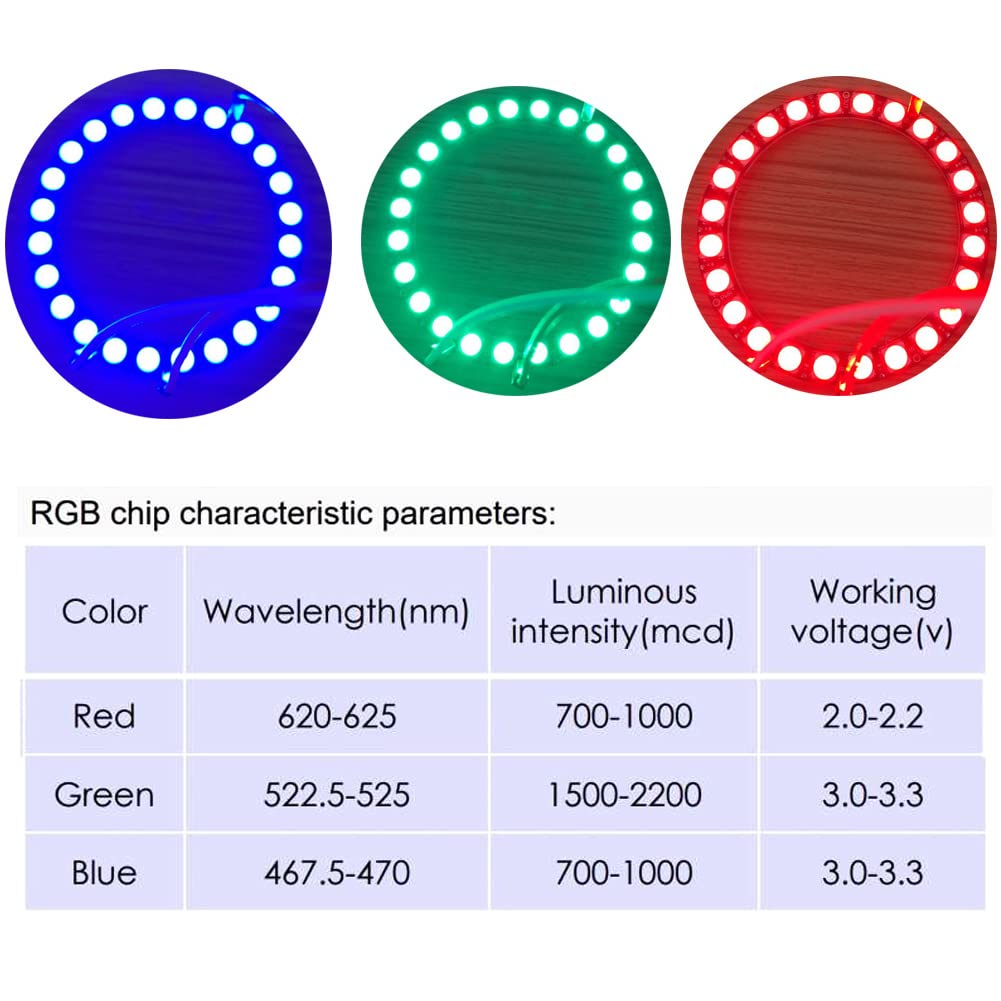

Red LED Wavelength(nm)/Luminous(mcd)	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000
Green LED Wavelength(nm)/Luminous(mcd)	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200
Blue LED Wavelength(nm)/Luminous(mcd)	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000
Emit Colors Numbers/Luminous(mcd)	16777216	16777216	16777216	16777216	16777216	16777216

	DIYmall 8 RGB LED	DIYmall 16 RGB LED	DIYmall 24 RGB LED	DIYmall 35 RGB LED	DIYmall 45 RGB LED	DIYmall 128 RGB LED

Customer Reviews	7	10	10	13	9	12
Price	$6.99	$7.99	$10.49	$10.99	$12.99	$26.99
LED Numbers	8	16	24	35	45	128
Outer diameter	27mm	48mm	72mm	96mm	120mm	120mm
Inner diameter	12mm	31mm	54mm	78mm	102mm	no data
Voltage	DC5V	DC5V	DC5V	DC5V	DC5V	DC5V
LED Chip	WS2812B	WS2812B	WS2812B	WS2812B	WS2812B	WS2812B
Each LED Current(mA)	18	18	18	18	18	18
Red LED Wavelength(nm)/Luminous(mcd)	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000	620-625/700-1000
Green LED Wavelength(nm)/Luminous(mcd)	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200	522.5-525/1500-2200
Blue LED Wavelength(nm)/Luminous(mcd)	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000	467.5-470/700-1000
Emit Colors Numbers	16777216	16777216	16777216	16777216	16777216	16777216
