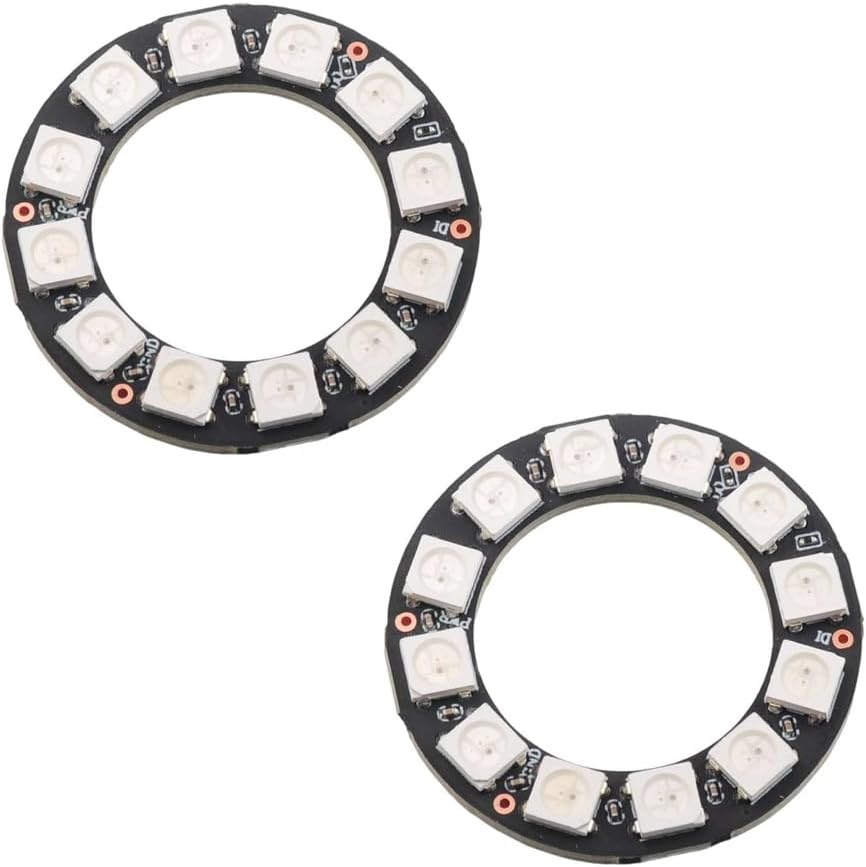

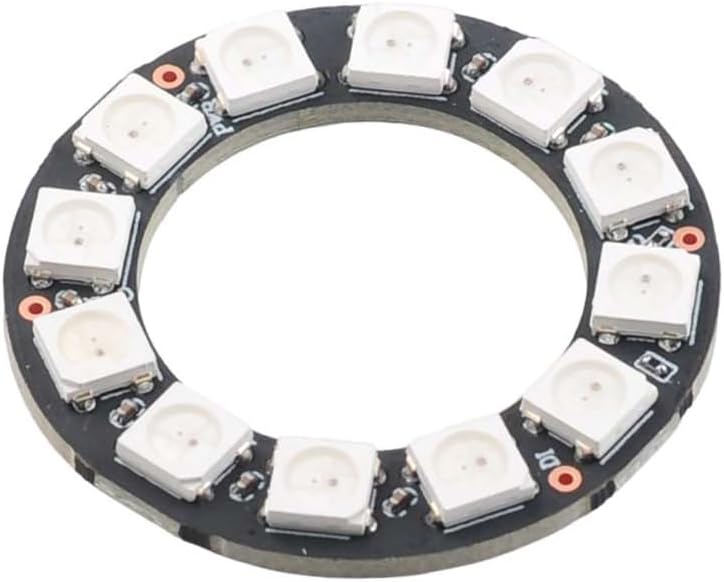

12 Bits WS2812 5050SMD RGB LED Ring Full Color LED Lamp Individually Addressable Colorful LED Light for Arduino Raspberry Pi Project (Pack of 2)
12 Bits WS2812 5050SMD RGB LED Ring Full Color LED Lamp Individually Addressable Colorful LED Light for Arduino Raspberry Pi Project (Pack of 2)
Couldn't load pickup availability
12 Bits WS2812 5050 RGB LED Ring
Description
Voltage:DC4-7V
Communication interface: Single-wire communication
LED Chip: WS2812B
Package Included:
2 X 12 bits WS2812B WS2812 5050 RGB LED Pixel Ring
It can emit 256X256X256=16777216 colors, you can also revise code to change the led brightness and color, and the current will be different.
Blue color is 700-1000mcd
Red color is Red color is 700-1000mcd
Green color is 1500-2200mcd
Customer’s Application
Applications: Used to make led screen, led wall, advertising board，Outdoor advertising signs. Applied to hotel, KTV, bars, clubs, shopping malls, architectural decorative lighting and boutique atmosphere lighting. Used as decorative lights

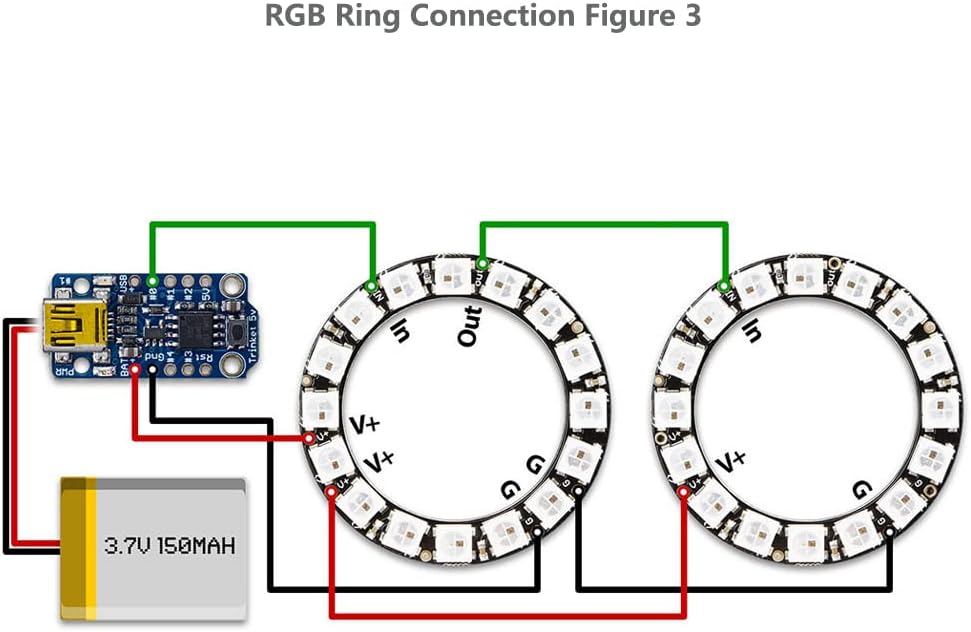

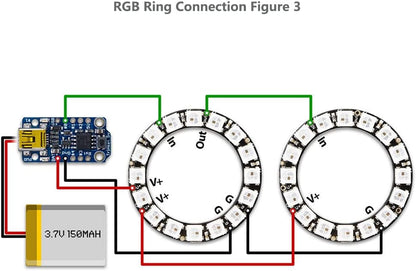

Connection
For Ar duino U NO to WS2812
5V to 5V
pin 6 to DI
GND to GND

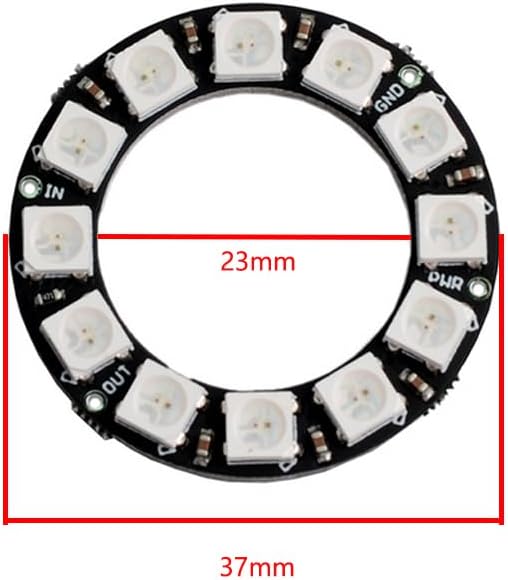

Size
Inside Diameter: 2.3cm
Outside Diameter: 3.7cm
12bits LED Light Ring Full Dream Color DC5V for Ar duino
|
24bits LED Light Ring Full Dream Color DC5V for Ar duino
|
64bits LED matrix Full Dream Color DC5V for Ar duino
|
16bits LED Light Ring Full Dream Color DC5V for Ar duino
|
|
|---|---|---|---|---|
|
|
||||
| Customer Reviews |
17
|
6
|
—
|
7
|
| Price | $8.99 | $13.98 | — no data | $11.99 |
| LED Number | 12 Bits | 24 Bits | 64 Bits | 16bits |
| LED Chip | WS2812B | WS2812B | WS2812B | WS2812B |
| Inside Diameter | 23mm / 0.91" | 52.3mm / 2.1" | 65mm*65mm | 32mm / 1.26" |
| Outside Diameter | 37mm / 1.46" | 65.6mm / 2.6" | no data | 45mm / 1.77" |
| with Integrated Drivers | ✓ | ✓ | ✓ | ✓ |
| Individually Addressable | ✓ | ✓ | ✓ | ✓ |
Stemedu 2PCS 8 LEDs WS2812B 5050 RGB LED Pixel Lamp Ring Click Here
|
Stemedu 2PCS 16 LEDs WS2812B 5050 RGB LED Pixel Lamp Ring Click Here
|
Stemedu 2PCS 24 LEDs WS2812B 5050 RGB LED Pixel Lamp Ring Click Here
|
Stemedu 2PCS 35 LEDs WS2812B 5050 RGB LED Pixel Lamp Ring Click Here
|
Stemedu USB RGB Controller DC5-24V Led Dimmer Click Here
|
Flexible LED RGB Color Car Sign
|
|
|---|---|---|---|---|---|---|
|
|
|
|
||||
| Customer Reviews |
19
|
4
|
6
|
4
|
10
|
32
|
| Price | $8.90 | $10.90 | $13.90 | — no data | — no data | — no data |
| LED Number | 8 bits | 16 bits | 24 bits | 35 bits | 1024 | |
| LED Chip | WS2812B | WS2812B | WS2812B | WS2812B | Support IC: WS2811, WS2812B, SK6812 | no data |
| Inside Diameter | 11mm / 0.43" | 31mm / 1.22" | 54mm / 2.13" | 78mm / 3.07" | Length: 220mm | Length 14.6" |
| Outside Diameter | 27mm / 1.06" | 48mm / 1.89" | 72mm / 2.83" | 96mm / 3.78" | no data | Width 3.6” |
| with Integrated Drivers | no data | no data | no data | no data | no data | no data |
| Individual Addressable | no data | no data | no data | no data | no data | no data |
| Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5-24V | DC 5V |
THE OTHER TYPES IN STEMEDU
RGB LEDs are widely used these days in electronic projects, due to their attractive visual effects. These LEDs are available in various sizes and shapes and in the strip form. You can find round and square shape in Stemedu.
- 🚩 Voltage: DC4-7V
- 🚩 LED built-in programmable IC, each LED can be individually addressed
- 🚩 These LED programmable light rings can be connected to multiple LED light rings through pin cascading
- 🚩 The LED light ring can be made into a cool clock, an RGB timer, a lucky turntable game console, a wearable decoration, or an interactive colorful decorative pendant and so on.
- 🚩 LED has the advantages of low voltage driving, environmental protection and energy conservation, high brightness, large scattering angle, good consistency, ultra-low power, and ultra-long service life
| Brand | Stemedu |
| Light Type | LED |
| Bulb Shape Size | S8 |
| Specific Uses For Product | Decoration |
| Light Color | multicolor |
